Product Summary

The BC847C is an NPN general purpose transistor. Application is general purpose switching and amplification.

Parametrics

BC847C absolute maximum ratings: (1)Collector-base voltage: 50 V; (2)Collector-emitter voltage: 45 V; (3)Emitter-base voltage: - 6 V; (4)Collector current (DC)- 100 mA; (5)Eak collector current - 200 mA; (6)Peak base current: 200 mA; (7)Total power dissipation: 250 mW; (8)Storage temperature: -65 to +150 °C; (9)Junction temperature: 150 °C; (10)Operating ambient temperature: -65 to +150 °C.

Features

BC847C features: (1)Low current (max. 100 mA); (2)Low voltage (max. 65 V).

Diagrams

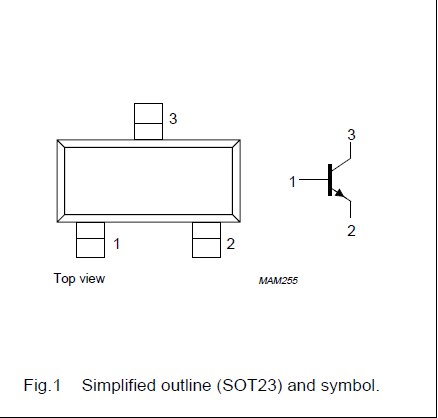

BC847C pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BC847C
BC847C
Taiwan Semiconductor
Transistors Bipolar (BJT) 1500W 20V 5% UNI TRANSZORB-TVS
Data Sheet
0-3000: $0.01
3000-6000: $0.01
BC847C,235
BC847C,235
NXP Semiconductors
Transistors Bipolar (BJT) TRANS GP TAPE-13
Data Sheet
0-1: $0.07
1-25: $0.07
25-100: $0.05
100-250: $0.03
BC847C_D87Z
BC847C_D87Z
Fairchild Semiconductor
Transistors Bipolar (BJT) SOT-23 NPN GP AMP
Data Sheet
Negotiable
BC847CDLP-7
BC847CDLP-7
Diodes Inc.
Transistors Bipolar (BJT) 100mA 45V
Data Sheet
0-1: $0.26
1-10: $0.20
10-100: $0.14
100-250: $0.12
BC847CDW1T1
BC847CDW1T1
ON Semiconductor
Transistors Bipolar (BJT) 100mA 50V Dual NPN
Data Sheet
Negotiable
BC847CDXV6T1
BC847CDXV6T1
ON Semiconductor
Transistors Bipolar (BJT) 100mA 50V Dual NPN
Data Sheet
Negotiable
BC847CDXV6T1G
BC847CDXV6T1G
ON Semiconductor
Transistors Bipolar (BJT) 100mA 50V Dual NPN
Data Sheet
0-1: $0.25
1-25: $0.21
25-100: $0.15
100-500: $0.08
BC847CDXV6T5
BC847CDXV6T5
ON Semiconductor
Transistors Bipolar (BJT) 100mA 50V Dual NPN
Data Sheet
Negotiable
