Product Summary
The ba50bcowfp-e2 is a low-saturation regulator with an output current of 1.0 A and an output voltage accuracy of 2%. A broad output voltage range is offered, from 1.5V to 10V, and built-in overcurrent protection and thermal shutdown (TSD) circuits prevent damage due to short-circuiting and overloading, respectively.
Parametrics
ba50bcowfp-e2 absolute maximum ratings: (1)Power supply voltage, VCC: 18 V; (2)Power dissipation: TO252-3, Pd: 1200 mW; TO252-5, Pd:1300mW; TO220FP-3, Pd: 2000mW; TO220FP-5, Pd: 2000mW; TO220FP-5 (V5), Pd: 2000mW; TO220CP-V5, Pd: 2000mW; (3)Operating temperature range, Topr: -40 to +105 ℃; (4)Ambient storage temperature, Tstg: -55 to +150 ℃; (5)Maximum junction temperature, Tjmax: 150 ℃.
Features
ba50bcowfp-e2 features: (1)Output current: 1 A (min.); (2)Output voltage accuracy: 2%; Broad output range available: 1.5 V -10 V; (3)Low saturation-voltage type with PNP output; (4)Built-in overcurrent protection circuit; (5)Built-in thermal shutdown circuit; (6)Integrated shutdown switch ; (7)Operating temperature range: -40℃ to +105℃.

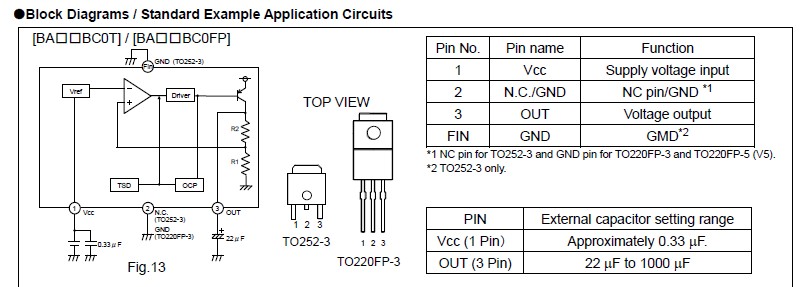

Diagrams
