Product Summary
The AX88196L is 10/100 base fast ethernet MAC controller. The AX88196L supports both 8 bit and 16 bit local CPU interfaces include MCS-51 series, 80186 series, MC68K series CPU and ISA bus. The AX88196L implements both 10Mbps and 100Mbps Ethernet function based on IEEE802.3 /IEEE802.3u LAN standard and supports both 10Mbps/100Mbps media-independent interface (MII) and legacy pure 10Mbps SNI interface to simplify the design.
Parametrics
AX88196L absolute maximum ratings: (1) Operating Temperature Ta: 0 to +85°C; (2) Storage Temperature Ts: -55 to +150°C; (3) Supply Voltage HVdd: -0.3 to +6V; (4) Supply Voltage Lvdd: -0.3 to Lvdd +0.5V; (5) Input Voltage HVin: -03 to HVdd +0.5V, LVin: -0.3 to LVdd +0.5V; (6) Lead Temperature (soldering 10 seconds maximum) Tl: -55 to 220°C.
Features
AX88196L features: (1) IEEE 802.3u 100BASE-T, TX, and T4 Compatible; (2) Single chip local CPU bus 10/100Mbps Fast Ethernet MAC Controller; (3) NE2000 register level compatible instruction; (4) Support both 8 bit and 16 bit local CPU interfaces include MCS-51 series, 80186 series and MC68K series CPU; (5) Support both 10Mbps and 100Mbps data rate; (6) Support Standard Print Port, can also used as general I/O port; (7) 128-pin LQFP low profile package; (8) 20MHz to 25MHz Operation, Dual 5V and 3.3V CMOS process with 5V I/O tolerance. Or pure 3.3V operation.

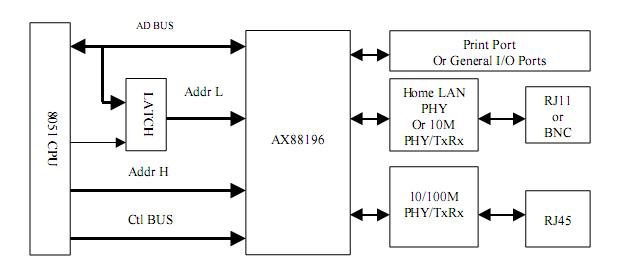

Diagrams
