Product Summary
The AN6780 is a IC designed for general purpose long interval timer. The AN6780 consists of an oscillator, frequency divider (flip-flop 15steps), output circuit, and power circuit. A cycle can be freely set with the external resistor (RT) and capacity (CT) of the oscillator. Application is timer, integrating timer, superlow frequency oscillator.
Parametrics
AN6780 absolute maximum ratings: (1)Supply voltage: 13 V; (2)Circuit voltage V1–4 (2–8): 0 to 4 V; (3)Circuit voltage V2, 3–4 (4, 6–8): 0 to 13 V; (4)Circuit voltage V5–4 (9–8): 0 to 4 V; (5)Circuit voltage V6–4 (11–8): VCC V; (6)Supply current: 30 mA; (7)Circuit current: -15 to 15 mA; (8)Power dissipation: 360 mW; (9)Operating ambient temperature: -20 to 75 ℃; (10)Storage temperature: -55 to 125 ℃.
Features
AN6780 features: (1)High inflow and outflow current : IO=±15mA max; (2)Small variation of oscillations; (3)Long interval timer setting : max 1 week.

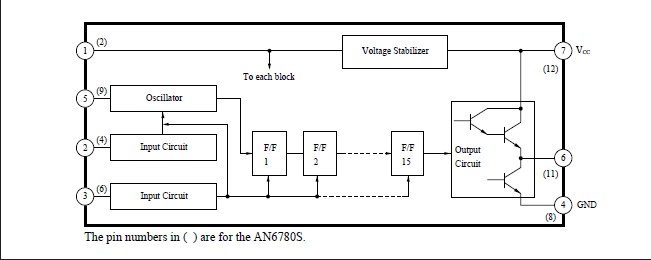

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AN6780 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
AN6780S |
Other |
|
Data Sheet |
Negotiable |
|
||||
