Product Summary
The AK4385ET-E2 is a DAC. It offers the perfect mix for cost and performance based audio systems. Using AKM multi bit architecture for its modulator the AK4385ET-E2 delivers a wide dynamic range while preserving linearity for improved THD+N performance. The AK4385ET-E2 has full differential SCF outputs, removing the need for AC coupling capacitors and increasing performance for systems with excessive clock jitter. The 24 Bit word length and 192kHz sampling rate make this part ideal for a wide range of applications including DVD-Audio. The AK4385ET-E2 is offered in a space saving 16pin TSSOP package.
Parametrics
AK4385ET-E2 absolute maximum ratings: (1)Power Supply: -0.3 to 6.0 V; (2)Input Current (any pins except for supplies): ±10 mA; (3)Input Voltage: -0.3 VDD+0.3 V; (4)Ambient Operating Temperature: -20 to 85 °C; (5)Storage Temperature: -65 to 150 °C.
Features
AK4385ET-E2 features: (1)Sampling Rate Ranging from 8kHz to 192kHz; (2)128 times Oversampling (Normal Speed Mode); (3)64 times Oversampling (Double Speed Mode); (4)32 times Oversampling (Quad Speed Mode); (5)24-Bit 8 times FIR Digital Filter; (6)On chip SCF; (7)Digital de-emphasis for 32k, 44.1k and 48kHz sampling; (8)Soft mute; (9)Digital Attenuator (Linear 256 steps); (10)THD+N: -94dB; (11)Dynamic Range: 108dB; (12)High Tolerance to Clock Jitter; (13)Power supply: 4.75 to 5.25V; (14)Very Small Package: 16pin TSSOP (6.4mm x 5.0mm); (15)AK4381 Pin Compatible.

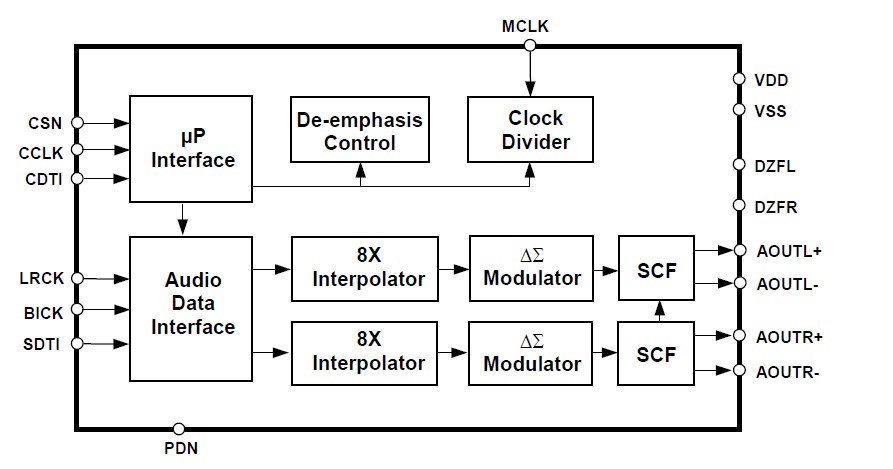

Diagrams
