Product Summary
The AK4114VQ-ES is a digital audio transceiver supporting 192kHz, 24bits. The AK4114VQ-ES can automatically detect a Non-PCM bit stream. The small package, 48pin LQFP of the AK4114VQ-ES saves the system space.
Parametrics
AK4114VQ-ES absolute maximum ratings: (1) Power Supplies: -0.3 to 4.6V (Analog) , -0.3 to 4.6V (Digital) , -0.3 to 6.0V (Input buffer) ; (2) Input Current (Any pins except supplies) IIN: ±10mA; (3) Input Voltage (Except XTI pin) VIN: -0.3 to TVDD +0.3V; (4) Input Voltage (XTI pin) VINX: -0.3 to DVDD +0.3V; (5) Ambient Temperature (Power applied) : -10 to 70°C; (6) Storage Temperature Tstg: -65 to +150°C.
Features
AK4114VQ-ES features: (1) AES3, IEC60958, S/PDIF, EIAJ CP1201 Compatible; (2) Low jitter Analog PLL; (3) PLL Lock Range : 32kHz to 192kHz; (4) 8-channel Receiver input; (5) 2-channel Transmission output (Through output or DIT) ; (6) Auxiliary digital input; (7) De-emphasis for 32kHz, 44.1kHz, 48kHz and 96kHz; (8) Operating Voltage: 2.7 to 3.6V with 5V tolerance; (9) Small Package: 48pin LQFP; (10) Ta: -10 to 70°C.

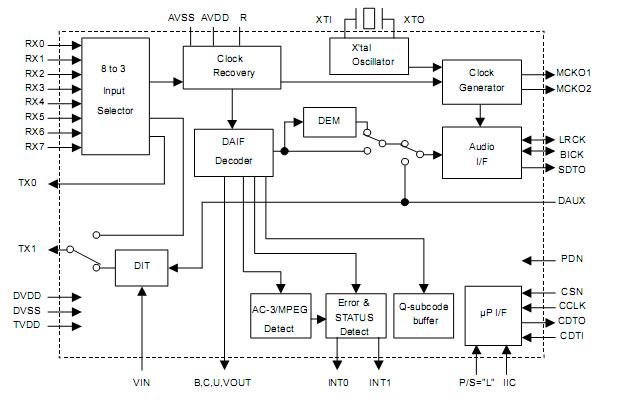

Diagrams
