ADP3157JR-REEL

ADP3157JR-REEL, programmable synchronous controller, 5 V, 5.5 mA, 165 mV, 500 kHz, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.06~1.06 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 2067 :	1.06 / Piece

PartNumber:: ADP3157JR-REEL

Brand:: Analog Devices - AD | Pack: SOIC | D/C: 99+

Availability:: Supply Ability: 100/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-04

From Other Seller

Part Number:ADP3157JR-REEL
US $1.06 - 1.06
Quantity:

piece

Product Summary

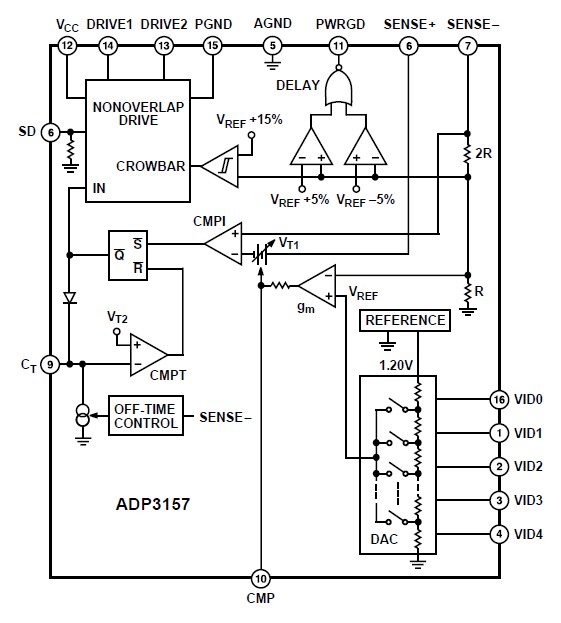

The ADP3157JR-REEL is a highly efficient synchronous buck switching regulator controller optimized for converting the 5 V main supply into the core supply voltage required by the Pentium III and other high performance processors. The ADP3157JR-REEL uses an internal 5-bit DAC to read a voltage identification (VID) code directly from the processor, which is used to set the output voltage between 1.3 V and 3.5 V. The ADP3157JR-REEL uses a current mode, constant off-time architecture to drive two external Nchannel MOSFETs at a programmable switching frequency that can be optimized for size and efficiency. Applications are (1)Pentium II and Pentium III Processor Families; (2)AMD-K6 Processors; (3)VRM Modules.

Parametrics

ADP3157JR-REEL absolute maximum ratings: (1)Input Supply Voltage (VCC): –0.3 V to +16 V; (2)VID0–VID4, SD, PWRGD, CMP, CT.–0.3 V to VCC; (3)DRIVE1, DRIVE2, SENSE+, SENSE: –0.3 V to VCC; (4)Operating Ambient Temperature Range: 0°C to +70°C; (5)Junction Temperature Range: 0°C to +150°C; (6)qJA: 110°C/W; (7)Storage Temperature Range: –65°C to +150°C; (8)Lead Temperature (Soldering, 10 sec): +300°C.
