Product Summary
The W83626F is a transparent LPC-to-ISA bus conversion IC. For the new generation Intel chipset Camino and Whitney, SiS Super South 960, featuring LPC bus, there is no support for ISA bus and slots. However the demand of ISA devices still exist. For such case, the W83626F is the best companion solution for the non-ISA chipset. Also the packages of the W83626F had been chosen to be the most economic solution for save the M/B board layout size and cost.
Features
W83626F features: (1)Meet LPC Spec. 1.1; (2)Support LDRQ# (LPC DMA), SERIRQ (serial IRQ); (3)Full ISA Bus Support except ISA Bus Masters; (4)5V ISA and 3.3V LPC interfaces; (5)All Software Transparent; (6)IRQ Serializer for ISA Parallel IRQ transfer to Serial IRQ; (7)Supports 3 fully ISA Compatible Slots without Buffering; (8)LPC Bus at 33MHz; (9)Supports Programmable ISA Bus Divide the PCI Clock into 3 or 4; (10)All ISA Signals can be Isolate; (11)14.318MHz in to generate two 14.318MHz buffer out and one 24.576MHz; (12)Specific Keyboard Functions supported; (13)Support 8 programmable general purpose I/O pins; (14)Supports Configuration registers for programming performance.

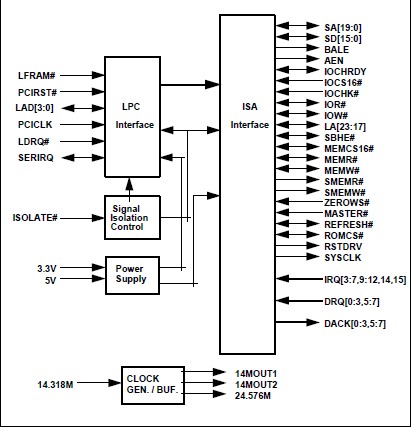

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 W83626F |
Other |
|
Data Sheet |
Negotiable |
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
W83601G |
|
IC GP I/O SMBUS 20-SSOP |
Data Sheet |
|
|
||||||
|
W83601R |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
W83602G |
|
IC GP I/O SMBUS 20-SSOP |
Data Sheet |
Negotiable |
|
||||||
|
W83602R |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
W83626D |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
W83626F |
Other |
|
Data Sheet |
Negotiable |
|
||||||
