Product Summary
The VT1211 is a high voltage 50 mA silicon rectifier.
Parametrics
VT1211 absolute maximum ratings: (1)Average Rectified Forward Current @ 50 oC, IO: 50 mA; (2)Max. Peak Surge Current, IFSM (8.3ms): 5 Amp; (3)Max. Forward Voltage Drop @ 50 mA, VF: 28Volts; (4)Ambient Operating Temperature Range, TA: -55 to + 125°C; (5)Storage Temperature Range, TSTG: -55 to + 150°C.
Features
VT1211 features: (1)small size molded package; (2)prv 10,000 to 15,000 volts; (3)fast recovery (r_series); (4)avalanche characteristics; (5)low leakage.

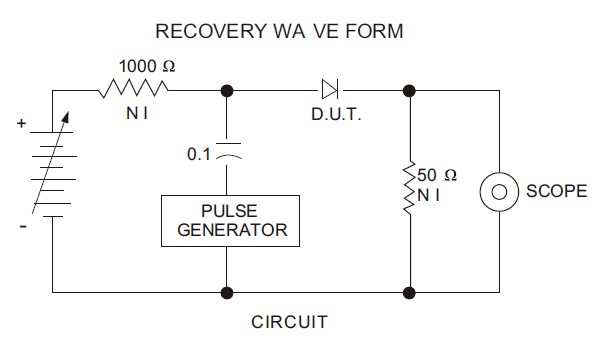

Diagrams
