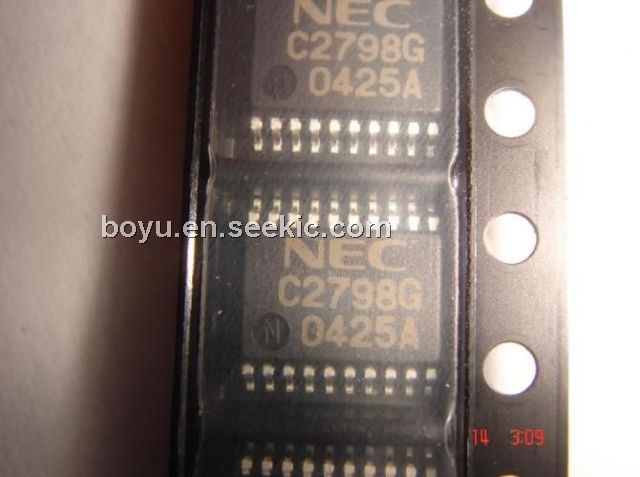

Product Summary
The UPC2798GR is a Silicon monolithic IC designed for use as QAM IF down convertor for digital CATV. This IC consists of AGC amplifier, mixer, oscillator, and video amplifier. The package is 20 pins SSOP suitable for high-density surface mount.
Parametrics
UPC2798GR absolute maximum ratings: (1)Supply Voltage 1 Vcc: 6.0 V; (2)Supply Voltage 2 Vcc: 11.0 V; (3)Power Dissipation PD: 500 mW; (4)Operating Ambient Temperature TA: -40 to +75 °C; (5)Storage Temperature Tstg: -55 to +150 °C.
Features
UPC2798GR features: (1)Low distortion AGC amplifier IIP3 = -9 dBm; (2)On chip IF convertor fin = 30 to 250 MHz; (3)On chip video amplifier Vout = 3.0 VP-P (differential, @ RL = 1kW); (4)Supply voltage: 5 V; (5)Packaged in 20 pins SSOP suitable for high-density surface mount.

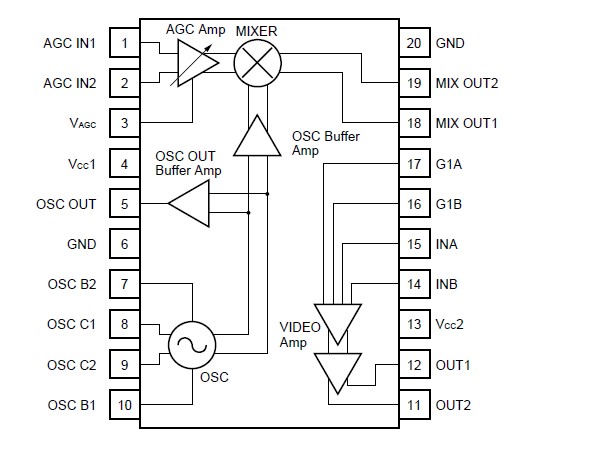

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

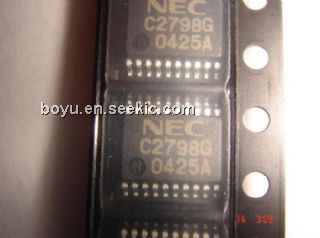

 UPC2798GR |
NEC/CEL |
Up-Down Converters 250MHz IF Downconvrt |
Data Sheet |
Negotiable |
|
||||||||||||
 |
UPC2798GR-A |
CEL |
Up-Down Converters 250MHz IF Downconvrt |
Data Sheet |
|
|
||||||||||||
|
UPC2798GR-EVAL |
NEC/CEL |
RF Development Tools For UPC2798GR-A |
Data Sheet |
Negotiable |
|
||||||||||||
|
UPC2798GR-E1-A |
CEL |
Up-Down Converters 250MHz IF Downconvrt |
Data Sheet |
|
|
||||||||||||
