Product Summary

The TSH63CDT is an amplifier. The TSH63CDT offers single, dual, triple and quad operational amplifiers featuring high video performances. Applications are(1)Standard definition video buffers; (2)Set-top boxes; (3)DVD players and recorders; (4)Analog and digital TVs.

Parametrics

TSH63CDT absolute maximum ratings: (1)VCC Supply Voltage (1): 14 V; (2)Vid Differential Input Voltage (2): ±2 V; (3)Vi Input Voltage (3): ±6 V; (4)Toper Operating Free Air Temperature Range: 0°C to +70 °C; (5)Tstg Storage Temperature: -65°C to +150 °C; (6)Tj Maximum Junction Temperature: 150 °C.

Features

TSH63CDT features: (1)5V, ±5V specifications; (2)Gain-bandwidth product: 60MHz; (3)Slew-rate: 80V/μs; (4)Output current: up to 45mA; (5)Input/output rail-to-rail; (6)Specified for 150Ω load; (7)Low distortion, THD: 0.1%; (8)SO packages.

Diagrams

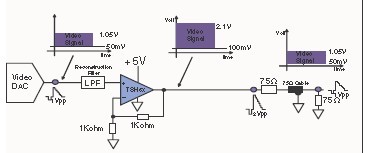

TSH63CDT pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TSH63CDT
TSH63CDT
STMicroelectronics
Operational Amplifiers - Op Amps Wide band low power operational amp.
Data Sheet
0-1810: $0.83
1810-2000: $0.79
2000-2500: $0.79
2500-5000: $0.76
