TPS2206IDB

TPS2206IDB, dual-slot pc card power-interface switchpower, 7 V, 110mW, dap

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.90~0.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1752 :	0.90 / Piece

PartNumber:: TPS2206IDB

Brand:: Texas Instruments - TI | Pack: | D/C: 04+

Availability:: Supply Ability: 3/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-18

From Other Seller

Part Number:TPS2206IDB
US $0.90 - 0.90
Quantity:

piece

Product Summary

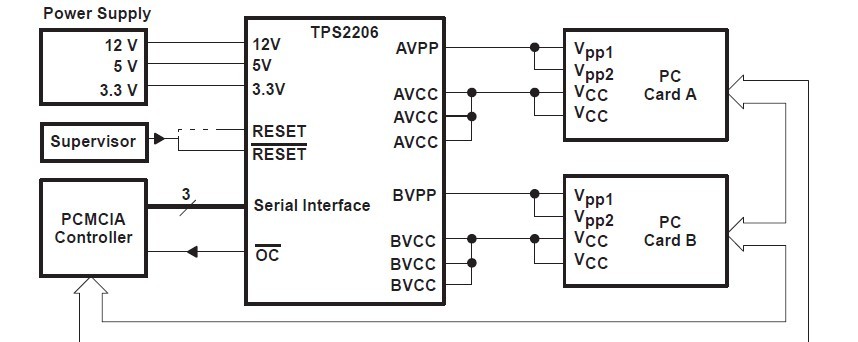

The TPS2206IDB is a dual-slot pc card power-interface switchpower. The TPS2206IDB provides an integrated power-management solution for two PC Cards. All of the discrete power MOSFETs, a logic section, current limiting, and thermal protection for PC Card control are combined on a single integrated circuit (IC), using the Texas Instruments LinBiCMOSE process. The TPS2206IDB allows the distribution of 3.3-V, 5-V, and/or 12-V card power by means of the P2C (PCMCIA Peripheral-Control) Texas Instruments nonproprietary serial interface. The current-limiting feature eliminates the need for fuses, which reduces component count and improves reliability.

Parametrics

TPS2206IDB absolute maximum ratings:(1)Input voltage range for card power: VI(5V): –0.3 V to dual-slot pc card power-interface switchpower, VI(3.3V): –0.3 V to 7 V, VI(12V): –0.3 V to 14 V; (2)Logic input voltage: –0.3 V to 7 V; (3)Continuous total power dissipation: See Dissipation Rating Table; (4)Output current (each card): IO(xVCC): internally limited,; (5)IO(xVPP): internally limited; (6)Operating virtual junction temperature range, TJ: –40°C to 150°C; (7)Operating free-air temperature range, TA : –40°C to 85°C; (8)Storage temperature range, Tstg: –55°C to 150°C; (9)Lead temperature 1,6 mm (1/16 inch)from case for 10 seconds: 260°C..
