TPS2046AD

TPS2046AD, power-distribution switch, 2.7 V, 2 kV, 250 mA, 10 μA, 2.5-ms, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1853 :	1.50 / Piece

PartNumber:: TPS2046AD

Brand:: Texas Instruments - TI | Pack: | D/C: 07+

Availability:: Supply Ability: 3/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-18

From Other Seller

Part Number:TPS2046AD
US $1.50 - 1.50
Quantity:

piece

Product Summary

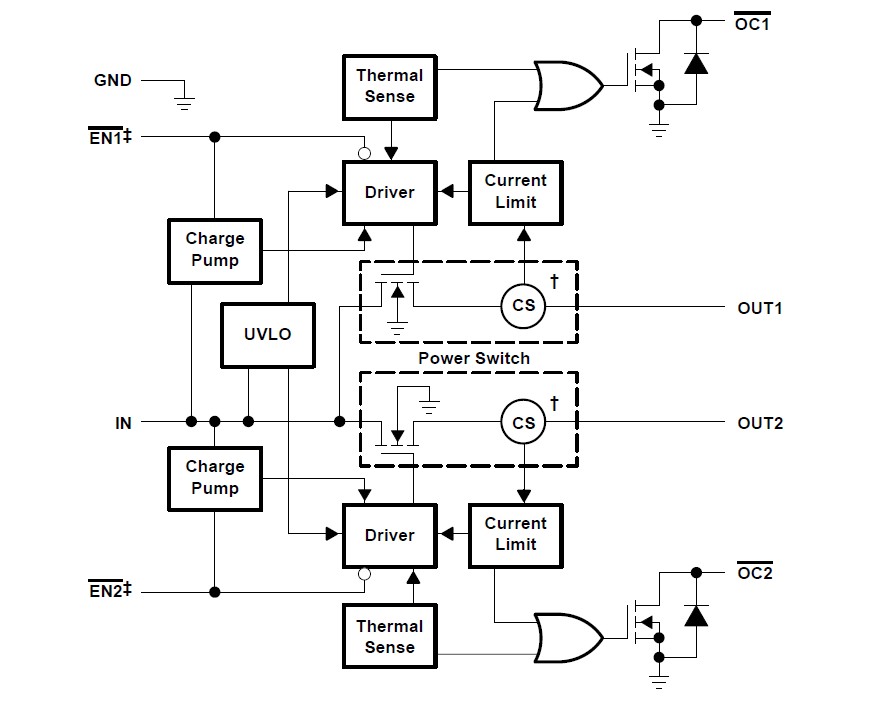

The TPS2046AD is a power-distribution switch. The TPS2046AD is intended for applications where heavy capacitive loads and short circuits are likely to be encountered. The TPS2046AD incorporates 80-mΩ N-channel MOSFET high-side power switches for power-distribution systems that require multiple power switches in a single package. Each switch is controlled by an independent logic enable input. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7 V.

Parametrics

TPS2046AD absolute maximum ratings: (1)Input voltage range, VI(IN)(see Note 1): –0.3 V to 6 V; (2)Output voltage range, VO(OUT)(see Note 1): –0.3 V to VI(IN)+ 0.3 V; (3)Input voltage range, VI(ENx)or VI(ENx): –0.3 V to 6 V; (4)Continuous output current, IO(OUT): internally limited; (5)Continuous total power dissipation: See Dissipation Rating Table; (6)Operating virtual junction temperature range, TJ: 0°C to 125°C; (7)Storage temperature range, Tstg: –65°C to 150°C; (8)Lead temperature soldering 1,6 mm (1/16 inch)from case for 10 seconds: 260°C; (9)Electrostatic discharge (ESD)protection: Human body model MIL-STD-883C: 2 kV; (10)Electrostatic discharge (ESD)protection: Machine model: 0.2 kV.

Features

TPS2046AD features: (1)80-mΩ High-Side MOSFET Switch; (2)250 mA Continuous Current Per Channel; (3)Independent Thermal and Short-Circuit Protection With Overcurrent Logic Output; (4)Operating Range: 2.7 V to 5.5 V; (5)CMOS- and TTL-Compatible Enable Inputs; (6)2.5-ms Typical Rise Time; (7)Undervoltage Lockout; (8)10 μA Maximum Standby Supply Current for Single and Dual (20 μA for Triple and Quad); (9)Bidirectional Switch; (10)Ambient Temperature Range, 0°C to 85°C; (11)ESD Protection.
