Product Summary
The TL751L12CD is a low-dropout positive-voltage regulator. It specifically designed for battery-powered systems. The TL751L12CD incorporates overvoltage and current-limiting protection circuitry, along with internal reverse-battery protection circuitry to protect the devices and the regulated system. The TL751L12CD is fully protected against 60-V load-dump and reverse-battery conditions. Extremely low quiescent current during full-load conditions makes these devices ideal for standby power systems.
Parametrics
TL751L12CD absolute maximum ratings: (1)Continuous input voltage: 26 V; (2)Transient input voltage(2)TA = 25°C: 60 V; (3)Continuous reverse input voltage: –15 V; (4)Transient reverse input voltage t ≤ 100 ms: –50 V; (5)Operating virtual junction temperature: 150 °C; (6)Lead temperature 1,6 mm (1/16 in)for 10 s: 260 °C; (7)Storage temperature range: –65 to 150 °C.
Features
TL751L12CD features: (1)Very Low Dropout Voltage, Less Than 0.6 V at 150 mA; (2)Reverse Transient Protection Down to –50 V; (3)Internal Thermal-Overload Protection; (4)Very Low Quiescent Current; (5)Overvoltage Protection; (6)TTL- and CMOS-Compatible Enable on TL751L Series; (7)Internal Overcurrent-Limiting Circuitry; (8)Less Than 500-mA Disable (TL751L Series); (9)60-V Load-Dump Protection.

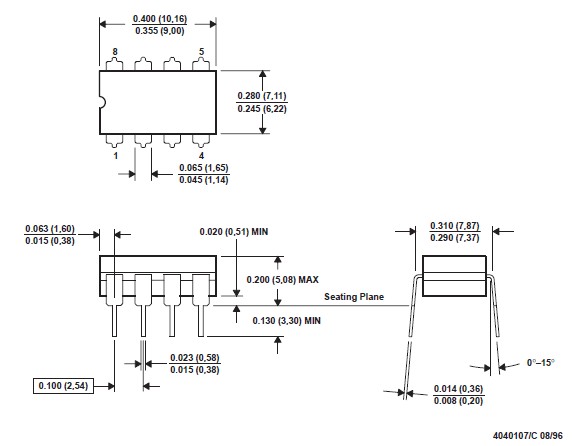

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TL751L12CD |
Texas Instruments |
Low Dropout (LDO) Regulators 12V 150mA LDO |
Data Sheet |
|
|
|||||||||||||
TL751L12CDE4 |
Texas Instruments |
Low Dropout (LDO) Regulators Pnp Low Current |
Data Sheet |
|
|
|||||||||||||
TL751L12CDR |
Texas Instruments |
Low Dropout (LDO) Regulators Pnp Low Current |
Data Sheet |
|
|
|||||||||||||
TL751L12CDRE4 |
Texas Instruments |
Low Dropout (LDO) Regulators Pnp Low Current |
Data Sheet |
|
|
|||||||||||||
TL751L12CDRG4 |
Texas Instruments |
Low Dropout (LDO) Regulators Single Output LDO 150mA |
Data Sheet |
|
|
|||||||||||||
TL751L12CDG4 |
Texas Instruments |
Low Dropout (LDO) Regulators Single Output LDO 150mA |
Data Sheet |
|
|
