TL431ACDR

TL431ACDR, shunt regulator, 37 V, 150 mA, 14 mV, 0.2-Ω, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~0.15 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 15000 :	0.15 / Piece

PartNumber:: TL431ACDR

Brand:: Texas Instruments - TI | D/C: 02+

Availability:: Supply Ability: 3/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-20

From Other Seller

Part Number:TL431ACDR
US $0.15 - 0.15
TL431ACDR,sop8

US $0.05 - 0.07 / Piece
(0) Remove
Quantity:

piece

Product Summary

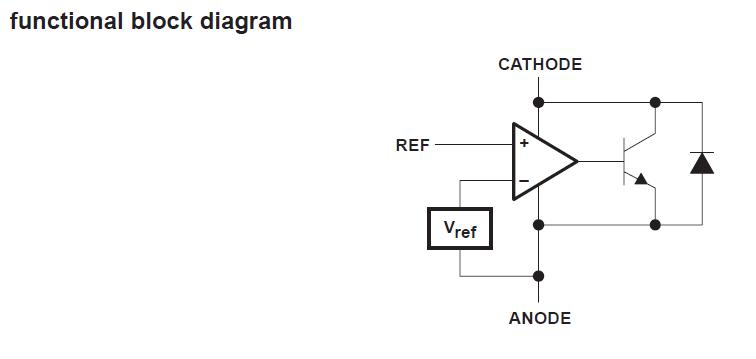

The TL431ACDR is a three-terminal adjustable shunt regulator, with specified thermal stability over applicable automotive, commercial, and military temperature ranges. The output voltage of TL431ACDR can be set to any value between Vref (approximately 2.5 V) and 36 V, with two external resistors. It has a typical output impedance of 0.2 Ω. Active output circuitry provides a very sharp turn-on characteristic, making these devices excellent replacements for Zener diodes in many applications, such as onboard regulation, adjustable power supplies, and switching power supplies. The TL431ACDR has exactly the same functionality and electrical specifications as the TL431, but has different pinouts for the DBV, DBZ, and PK packages.

Parametrics

TL431ACDR absolute maximum ratings: (1)Cathode voltage, VKA: 37 V; (2)Continuous cathode current range, IKA: -100 mA to 150 mA; (3)Reference input current range: -50 μA to 10 mA; (4)Operating virtual junction temperature, TJ: 150℃; (5)Storage temperature range, Tstg: -65℃ to 150℃.

Features

TL431ACDR features: (1)Operation From -40℃ to 125℃; (2)Reference Voltage Tolerance at 25℃: 0.5%: B Grade, 1%: A Grade, 2%: Standard Grade; (3)Typical Temperature Drift (TL431B): 6 mV (C Temp), 14 mV (I Temp, Q Temp); (4)Low Output Noise; (5)0.2-Ω Typical Output Impedance; (6)Sink-Current Capability: 1 mA to 100 mA; (7)Adjustable Output Voltage: Vref to 36 V.
