Product Summary

The sound fader control circuit TEA6320T is an I2C-bus controlled stereo preamplifier for car radio hi-fi sound applications.

Parametrics

TEA6320T absolute maximum ratings: (1)Supply voltage: 0 to 10 V; (2)Voltage at all pins except pin 2 referenced to GND (pin 2): 0 to VCC V; (3)Operating ambient temperature: -40 to +85 °C; (4)Storage temperature: -65 to +150 °C.

Features

TEA6320T features: (1)Source selector for four stereo and one mono inputs; (2)Interface for noise reduction circuits; (3)Interface for external equalizer; (4)Volume, balance and fader control; (5)Special loudness characteristic automatically controlled in combination with volume setting; (6)Bass and treble control; (7)Mute control at audio signal zero crossing; (8)Fast mute control via I2C-bus; (9)Fast mute control via pin; (10)I2C-bus control for all functions; (11)Power supply with internal power-on reset.

Diagrams

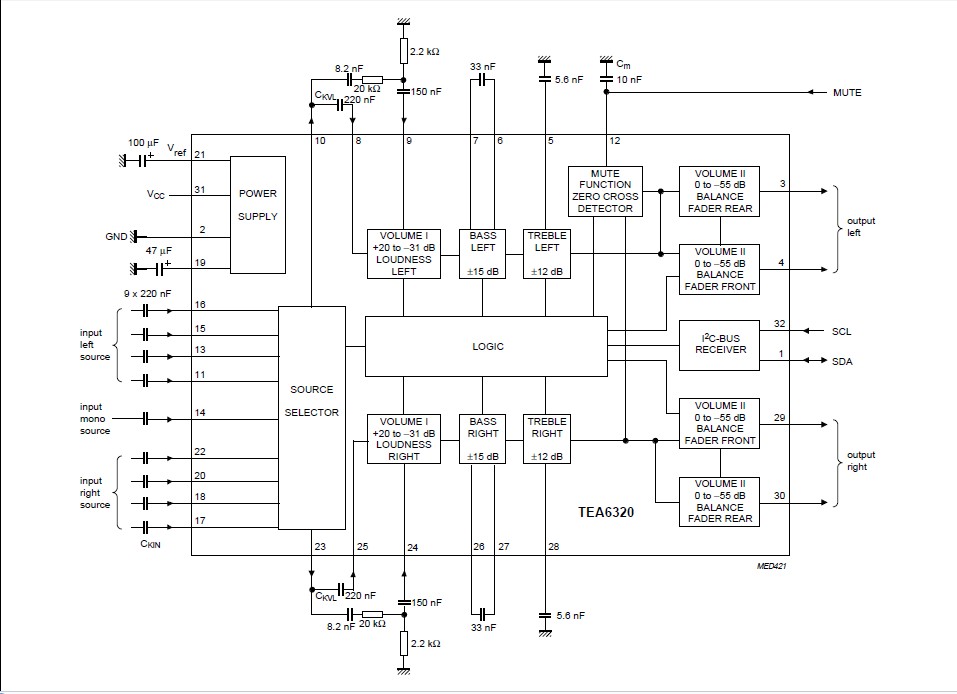

TEA6320T pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TEA6320T/V1,512
TEA6320T/V1,512
NXP Semiconductors
Audio DSPs SOUND FADER CONTROL
Data Sheet
0-580: $1.96
580-1000: $1.65
1000-2000: $1.57
TEA6320T/V1,518
TEA6320T/V1,518
NXP Semiconductors
Audio DSPs SOUND FADER CONTROL (SOFAC)
Data Sheet
0-1: $2.95
1-25: $2.66
25-100: $2.42
100-250: $2.18
TEA6320TD
TEA6320TD
NXP Semiconductors
Audio DSPs SOUND FADER CONTROL
Data Sheet
Negotiable
