Product Summary
The TDA1387T/N1 is a member of a generation of digital-to-analog converters which incorporates the innovative technique of Continuous Calibration. The largest bit currents are repeatedly generated from one single reference current. The TDA1387T/N1 duplication is based upon an internal charge storage principle and has an accuracy which is insensitive to ageing, temperature and process variations. Application is portable digital audio equipment.
Parametrics
TDA1387T/N1 absolute maximum ratings: (1)Supply voltage: - 6.0 V; (2)Maximum crystal temperature: +150 °C; (3)Storage temperature: -55 +150 °C; (4)Operating ambient temperature: -40 +85 °C; (5)Electrostatic handling note 1: -2000 +2000 V; (6)Electrostatic handling note 2: -200 +200 V.
Features
TDA1387T/N1 features: (1)Low power consumption; (2)Low total harmonic distortion; (3)Wide dynamic range (16-bit resolution); (4)Continuous Calibration (CC)concept; (5)Single 3 to 5.5 V supply rail; (6)Output and bias current are proportional to the supply voltage; (7)Fast settling time enables 2, 4 and 8 times oversampling (serial input)or double-speed operation at 4 times oversampling; (8)Internal bias current ensures maximum dynamic range; (9)Wide operating temperature range (-40 to + 85 °C); (10)I2S-bus input format (time multiplex, two complement, TTL); (11)No zero-crossing distortion; (12)Large DC output voltage compliance; (13)Contained in small outline package.

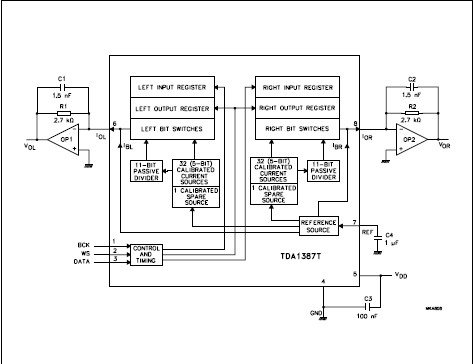

Diagrams
