Product Summary
The TC74VHC595FT is an advanced high speed 8-bit shift register/latch fabricated with silicon gate C2MOS technology. It achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. The TC74VHC595FT contains an 8-bit static shift register which feeds an 8-bit storage register. Shift operation is accomplished on the positive going transition of the SCK input. The output register is loaded with the contents of the shift register on the positive going transition of the RCK input.
Parametrics
TC74VHC595FT absolute maximum ratings: (1)Supply voltage range VCC: -0.5 to 7.0 V; (2)DC input voltage VIN: -0.5 to 7.0 V; (3)DC output voltage VOUT: -0.5 to VCC + 0.5 V; (4)Input diode current IIK: -20 mA; (5)Output diode current IOK: ±20 mA; (6)DC output current IOUT: ±25 mA; (7)DC VCC/ground current ICC: ±75 mA; (8)Power dissipation PD: 180 mW; (9)Storage temperature Tstg: -65 to 150 °C.
Features
TC74VHC595FT features: (1)High speed: fmax = 185 MHz (typ.)at VCC = 5 V; (2)Low power dissipation: ICC = 4 μA (max)at Ta = 25°C; (3)High noise immunity: VNIH = VNIL = 28% VCC (min); (4)Power down protection is provided on all inputs.; (5)Balanced propagation delays: tpLH - tpHL; (6)Wide operating voltage range: VCC (opr)= 2 V to 5.5 V; (7)Low noise: VOLP = 1.0 V (max); (8)Pin and function compatible with 74ALS595.

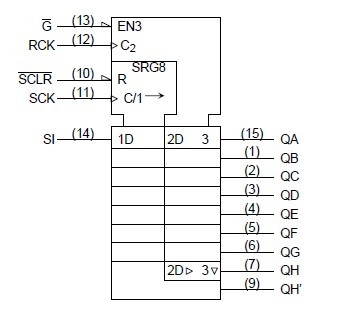

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TC74VHC595FT(EK2,M |
Toshiba |
Counter Shift Registers 8-Bit Shift Register Tri-State |
Data Sheet |
|
|
||||||||||||||
 |
TC74VHC595FT(EL) |
|
IC REGISTER SHIFT 8-BIT 16-TSSOP |
Data Sheet |
Negotiable |
|
||||||||||||||
|
TC74VHC595FTELM |
Toshiba |
Counter Shift Registers 8-Bit Shift Register Tri-State |
Data Sheet |
|
|
||||||||||||||
|
TC74VHC595FT(EL,M) |
|
IC REGISTER SHIFT 8-BIT 16-TSSOP |
Data Sheet |
|
|
||||||||||||||
