Product Summary

The TC74VHC540F is an advanced high speed CMOS octal bus buffer fabricated with silicon gate C2MOS technology. The TC74VHC540F achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. The TC74VHC540F is an inverting type. When either G1 or G2 are high, the terminal outputs are in the high-impedance state.

Parametrics

TC74VHC540F absolute maximum ratings: (1)Supply voltage range VCC: -0.5 to 7.0 V; (2)DC input voltage VIN: -0.5 to 7.0 V; (3)DC output voltage VOUT: -0.5 to VCC + 0.5 V; (4)Input diode current IIK: -20 mA; (5)Output diode current IOK: ±20 mA; (6)DC output current IOUT: ±25 mA; (7)DC VCC/ground current ICC: ±75 mA; (8)Power dissipation PD: 180 mW; (9)Storage temperature Tstg: -65 to 150 °C.

Features

TC74VHC540F features: (1)High speed: tpd = 3.7 ns (typ.)at VCC = 5 V; (2)Low power dissipation: ICC = 4 μA (max)at Ta = 25°C; (3)High noise immunity: VNIH = VNIL = 28% VCC (min); (4)Power down protection is provided on all inputs.; (5)Balanced propagation delays: tpLH - tpHL; (6)Wide operating voltage range: VCC (opr)= 2 V to 5.5 V; (7)Low noise: VOLP = 1.2 V (max); (8)Pin and function compatible with 74ALS540/541.

Diagrams

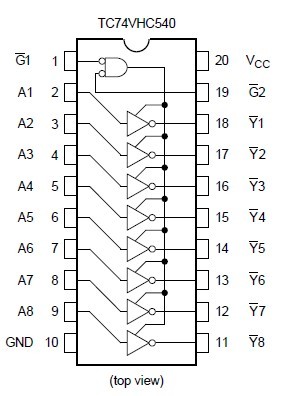

TC74VHC540F pin connection
