TC74LCX541FT

TC74LCX541FT, CMOS octal bus buffer, 7.0 V, 180 mW, 100 mA, sop

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1673 :	0.30 / Piece

PartNumber:: TC74LCX541FT

Brand:: Toshiba Semiconductor - Toshiba | Pack: | D/C: 06+

Availability:: Supply Ability: 3/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-21

From Other Seller

Part Number:TC74LCX541FT
US $0.30 - 0.30
Quantity:

piece

Product Summary

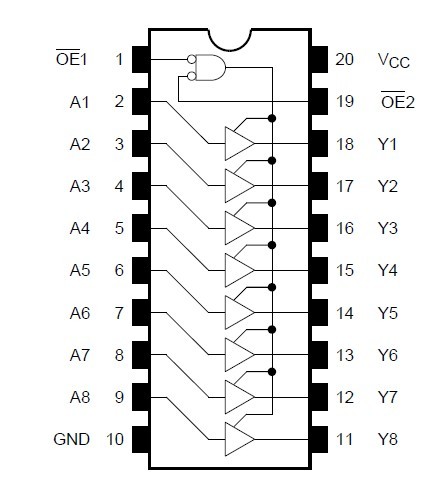

The TC74LCX541FT is a high-performance CMOS octal bus buffer. Designed for use in 3.3-V systems, it achieves high-speed operation while maintaining the CMOS low power dissipation. The device is designed for low-voltage (3.3 V) VCC applications, but it could be used to interface to 5 V supply environment for both inputs and outputs. The TC74LCX541FT is a non-inverting 3-state buffer having two active-low output enables. When either OE1 orOE2 are high, the terminal outputs are in the high-impedance state. The TC74LCX541FT is designed to be used with 3-state memory address drivers, etc.

Parametrics

TC74LCX541FT absolute maximum ratings: (1)Power supply voltage VCC: -0.5 to 7.0 V; (2)DC input voltage VIN: -0.5 to 7.0 V; (3)Input diode current IIK: -50 mA; (4)Output diode current IOK: ±50 mA; (5)DC output current IOUT: ±50 mA; (6)Power dissipation PD: 180 mW; (7)DC VCC/ground current ICC/IGND: ±100 mA; (8)Storage temperature Tstg: -65 to 150 °C.

Features

TC74LCX541FT features: (1)Low-voltage operation: VCC = 2.0 to 3.6 V; (2)High-speed operation: tpd = 6.5 ns (max)(VCC = 3.0 to 3.6 V); (3)Output current: |IOH|/IOL = 24 mA (min)(VCC = 3.0 V); (4)Latch-up performance: -500 mA; (5)Available in JEITA SOP, TSSOP and VSSOP (US); (6)Power-down protection provided on all inputs and outputs; (7)Pin and function compatible with the 74 series.
