Product Summary

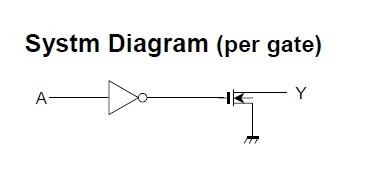

The TC74LCX07FT is a high-performance CMOS buffer. Designed for use in 3.3-V systems, it achieves high-speed operation while maintaining the CMOS low power dissipation. The TC74LCX07FT has high performance MOS N-channel transistor. (open-drain outputs) The TC74LCX07FT is designed for low-voltage (3.3 V) VCC applications, but it could be used to interface to 5-V supply environment for inputs.

Parametrics

TC74LCX07FT absolute maximum ratings: (1)Power supply voltage VCC: -0.5 to 7.0 V; (2)DC input voltage VIN: 0.5 to 7.0 V; (3)DC output voltage VOUT: 0.5 to VCC - 0.5 V; (4)Input diode current IIK: 50 mA; (5)Output diode current IOK: 50 mA; (6)DC output current IOUT: 50 mA; (7)Power dissipation PD: 180 mW; (8)DC VCC/ground current ICC/IGND: 100 mA; (9)Storage temperature Tstg: -65 to 150 °C.

Features

TC74LCX07FT features: (1)Low-voltage operation: VCC = 2.0 to 3.6 V; (2)High-speed operation: tpz = 3.7 ns (max)(VCC = 3.0 to 3.6 V); (3)Output current: IOL = 24 mA (min)(VCC = 3.0 V); (4)Latch-up performance: −500 mA; (5)Available in JEDEC SOP, JEITA SOP and TSSOP; (6)Open-drain outputs; (7)Power-down protection provided on all inputs and outputs; (8)Pin and function compatible with the 74 series (74AC/VHC/HC/F/ALS/LS etc.)07 type.
