Product Summary
The TC74HCT164AF is a high speed cmos d-type flip flop fabricated with silicon gate C2MOS technology. The TC74HCT164AF achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. The TC74HCT164AF may be used as a level converter for interfacing TTL or NMOS to High Speed CMOS. The inputs are compatible with TTL, NMOS and CMOS output voltage levels. Information signals applied to the D inputs are transferred to the Q outputs on the positive going edge of the clock pulse.
Parametrics
TC74HCT164AF absolute maximum ratings: (1)Supply voltage range VCC: -0.5 to 7 V; (2)DC input voltage VIN: -0.5 to VCC + 0.5 V; (3)DC output voltage VOUT: -0.5 to VCC + 0.5 V; (4)Input diode current IIK: ±20 mA; (5)Output diode current IOK: ±20 mA; (6)DC output current IOUT: ±25 mA; (7)DC VCC/ground current ICC: ±50 mA; (8)Power dissipation PD: 500 (DIP)(Note 2)/180 (SOP)mW; (9)Storage temperature Tstg: -65 to 150 °C.
Features
TC74HCT164AF features: (1)High speed: fmax = 56 MHz (typ.)at VCC = 5 V; (2)Low power dissipation: ICC = 4 μA (max)at Ta = 25°C; (3)Compatible with TTL outputs: VIH = 2.0 V (min), VIL = 0.8 V (max); (4)Wide interfacing ability: LSTTL, NMOS, CMOS; (5)Output drive capability: 10 LSTTL loads; (6)Symmetrical output impedance: |IOH| = IOL = 4 mA (min); (7)Balanced propagation delays: tpLH - tpHL; (8)Pin and function compatible with 74LS174.

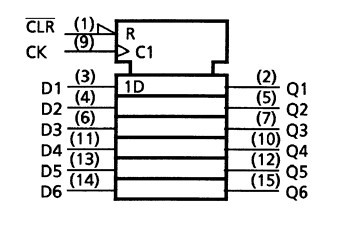

Diagrams
