Product Summary

The TC4429COA is an inverting driver. The TC4429COA is fabricated in CMOS for lower power, more efficient operation versus bipolar driver. Applications are (1)Switch-mode power supplies; (2)Motor controls; (3)Pulse transformer driver; (4)Class D switching amplifiers.

Parametrics

TC4429COA absolute maximum ratings: (1)Supply Voltage: +20V; (2)Input Voltage: – 5V to > VDD; (3)Input Current (VIN > VDD): 50mA; (4)Power Dissipation 5-Pin TO-220: 1.6W; (5)Storage Temperature Range: – 65°C to +150°C; (6)Operating Temperature (Chip): +150°C.

Features

TC4429COA features: (1)Latch-Up Protected : Will Withstand > 1.5A Reverse Output Current; (2)Logic Input Will Withstand Negative Swing Up to 5V; (3)ESD Protected: 4kV; (4)Matched Rise and Fall Times: 25nsec; (5)High Peak Output Current: 6A Peak; (6)Wide Operating Range: 4.5V to 18V; (7)High Capacitive Load Drive: 10,000 pF; (8)Short Delay Time : 55nsec Typ; (9)Logic High Input, Any Voltage: 2.4V to VDD; (10)Low Supply Current With Logic Inpu : 450mA; (11)Low Output Impedance: 2.5W; (12)Output Voltage Swing to Withi25mV of Ground or VDD.

Diagrams

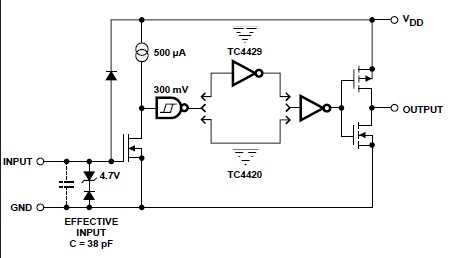

TC4429COA pin connection
