SN74HCT244NSR

SN74HCT244NSR, octal buffer and line driver, 7 V, 20 mA, 1 μA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10000 :	1.00 / Piece

PartNumber:: SN74HCT244NSR

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 4/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-20

From Other Seller

Part Number:SN74HCT244NSR
US $1.00 - 1.00
Quantity:

piece

Product Summary

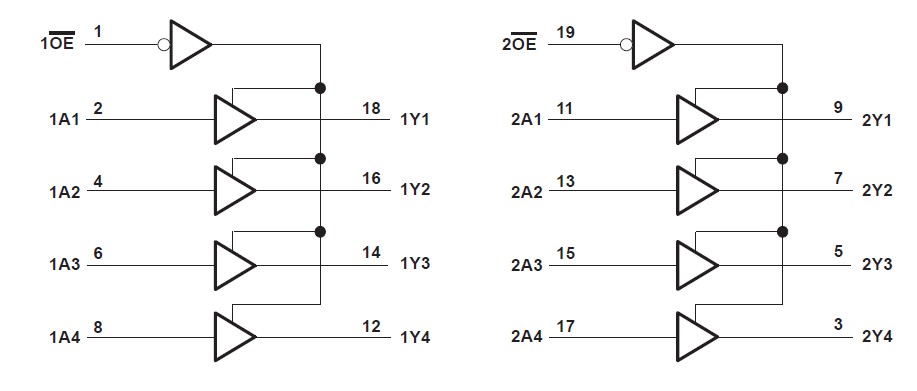

The SN74HCT244NSR is an octal buffer and line driver. It is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receiver and transmitter. The SN74HCT244NSR is organized as two 4-bit buffers/drivers with separate output-enable (OE) inputs. When OE is low, the device passes noninverted data from the A inputs to the Y outputs. When OE is high, the outputs are in the high-impedance state.

Parametrics

SN74HCT244NSR absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC)(see Note 1): ±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC)(see Note 1): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±35 mA; (5)Continuous current through VCC or GND: ±70 mA; (6)Package thermal impedance, θJA (see Note 2): DB package: 70°C/W; (7)Package thermal impedance, θJA (see Note 2): DW package: 58°C/W; (8)Package thermal impedance, θJA (see Note 2): N package: 69°C/W; (9)Package thermal impedance, θJA (see Note 2): NS package: 60°C/W; (10)Package thermal impedance, θJA (see Note 2): PW package: 83°C/W; (11)Storage temperature range, Tstg: –65°C to 150°C.
