Product Summary
The SN74AHCT244PWR is an octal buffer/driver. It is designed specifically to improve both the performance and density of 3-state memory-address driver, clock driver, and bus-oriented receiver and transmitter. The SN74AHCT244PWR is organized as two 4-bit buffers/line drivers with separate output-enable (OE) input. When OE is low, the SN74AHCT244PWR passes data from the A inputs to the Y outputs. When OE is high, the outputs are in the high-impedance state.
Parametrics
SN74AHCT244PWR absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input voltage range, VI (see Note 1): –0.5 V to 7 V; (3)Output voltage range, VO (see Note 1): –0.5 V to VCC + 0.5 V; (4)Input clamp current, IIK (VI < 0): –20 mA; (5)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (6)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (7)Continuous current through VCC or GND: ±75 mA; (8)Package thermal impedance, θJA (see Note 2): DB package: 70°C/W; (9)Package thermal impedance, θJA (see Note 2): DGV package: 92°C/W; (10)Package thermal impedance, θJA (see Note 2): DW package: 58°C/W; (11)Package thermal impedance, θJA (see Note 2): N package: 69°C/W; (12)Package thermal impedance, θJA (see Note 2): NS package: 60°C/W; (13)Package thermal impedance, θJA (see Note 2): PW package: 83°C/W; (14)Storage temperature range, Tstg: –65°C to 150°C.
Features
SN74AHCT244PWR features: (1)Inputs Are TTL-Voltage Compatible; (2)Latch-Up Performance Exceeds 250 mA Per JESD 17.

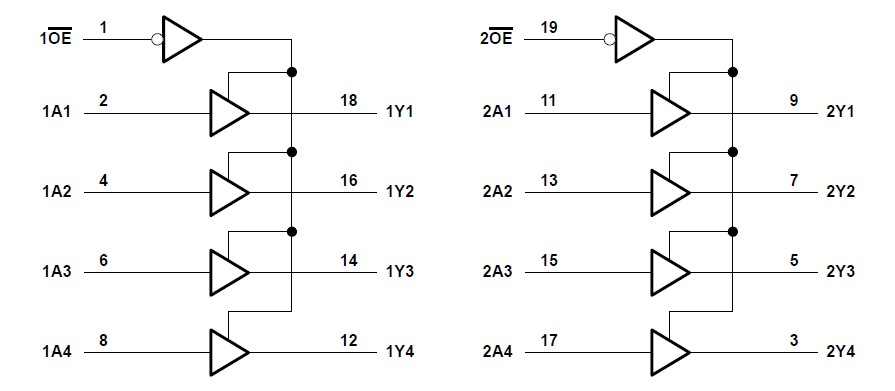

Diagrams
