Product Summary
The SD4002 is a CMOS LSI chip developed for world-wide FM / MW / LW tuning with PLL frequency synthesizer system. The SD4002 can make a compact and high performance FM / MW / LW tuner with clock function for high-end car stereo, home stereo and so on because these CMOS LSIs are in 64-pin QFP package with built-in PLL frequency synthesizer, controller, 200 MHz prescaler, LCD driver and IF counter.
Features
SD4002 features: (1)Single power supply of 5V±10%; (2)Built-in prescaler (200MHz MAX. Vin=0.3VPP ), IF counter and LCD driver (1/2 duty, 1/2 bias, frame frequency: 100Hz); (3)Capable of receiving FM and MW in the whole world and LW in Europe; (4)Tuning function: Manual tuning, auto-tuning (seek and scan)and preset memory scan; (5)Independent preset memory programming by six buttons for up to 18FM stations (sixFM1, FM2 and FM3 stations each), up to 12 MW stations (six MW1 and MW2 stations each), up to six LW stations and VF broadcasting stations; (6)Each last channel memory for FM : 3, MW: 1 and VF : 1; (7)VF auto-tuning (SK signal search)with DK stand-by function.

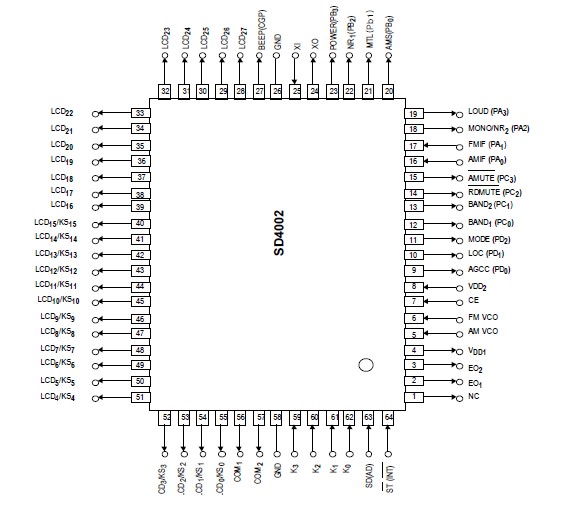

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SD4002 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
SD400 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SD4000C |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SD4000R |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SD4001 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SD4002 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SD400C |
Other |
|
Data Sheet |
Negotiable |
|
||||
