SC28L194A1BE

SC28L194A1BE, Quad UART, 6.2 V, 915 mW, 125 ns, QFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $20.00~20.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	20.00 / Piece

PartNumber:: SC28L194A1BE

Brand:: Philips Electronics India Limited - PHILIPS | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 1/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-06

From Other Seller

Part Number:SC28L194A1BE
US $20.00 - 20.00
Quantity:

piece

Product Summary

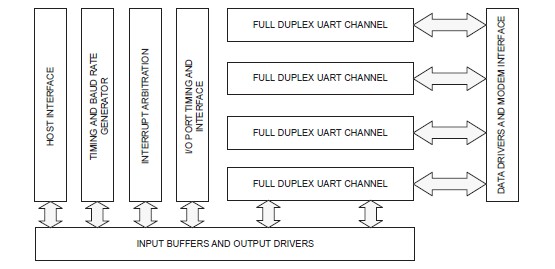

The SC28L194A1BE Quad UART is a single chip CMOS-LSI communications device that provides 4 full-duplex asynchronous channels with significantly deeper 16 byte FIFOs, Automatic in-band flow control using Xon/Xoff characters defined by the user and address recognition in the Wake-up mode. Synchronous bus interface is used for all communication between host and QUART. The SC28L194A1BE is fabricated in Philips state of the art CMOS technology that combines the benefits of low cost, high density and low power consumption.

Parametrics

SC28L194A1BE absolute maximum ratings: (1)VIN, VDD: 6.2 V; (2)Lx, SD, MODE, FB, CREF: -0.3 to 6.2 V (or to VDD +0.3 V whichever is less); (3)GND: -0.3 to +0.3 V; (4)ESD Rating: 2 kV; (5)Storage Temperature: -65 to 125°C; (6)Operating Junction Temperature: 150°C; (7)Power Dissipation (Package)a 10-pin MSOPb: 481 mW, 10-pin MLP33: 915 mW.

Features

SC28L194A1BE features: (1)Single 3.3V and 5.0V power supply; (2)Four Philips industry standard full duplex UART channels; (3)Sixteen byte receiver FIFOs for each UART; (4)Sixteen byte transmit FIFOs for each UART; (5)In band flow control using programmable Xon/Xoff characters; (6)Flow control using CTSN RTSN hardware handshaking; (7)Automatic address detection in multi-drop mode; (8)Three byte general purpose character recognition; (9)Fast data bus, 15 ns data bus release time, 125 ns bus cycle time; (10)Programmable interrupt priorities; (11)Automatic identification of highest priority interrupt pending; (12)Global interrupt and control registers ease setup and interrupt handling.
