Product Summary
The REF2920AIDBZT is a precision, low-power, low-voltage dropout voltage reference available in a tiny SOT23-3. The REF2920AIDBZT’s small size and low power consumption (50μA max) make it ideal for portable and battery-powered applications. The REF2920AIDBZT does not require a load capacitor, but is stable with any capacitive load. The applications of the REF2920AIDBZT include portable, battery-powered equipment, data acquisition systems, medical equipment, hand-held test equipment.
Parametrics
REF2920AIDBZT absolute maximum ratings: (1)Supply Voltage, V+ to V–: 7.0V; (2)Output Short-Circuit(2): Continuous; (3)Operating Temperature:–40℃ to +125℃; (4)Storage Temperature:–65℃ to +125℃; (5)Junction Temperature: +150℃; (6)Lead Temperature (soldering, 10s): +300℃.
Features
REF2920AIDBZT features: (1)Microsize package: SOT23-3; (2)low dropout: 1mV; (3)high output current: 25mA; (4)low temperature drift: 100ppm/℃ max; (5)high accuracy: 2%; (6)low IQ: 50μA max.

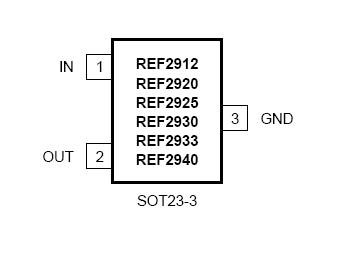

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 REF2920AIDBZT |
Texas Instruments |
Voltage & Current References 2.048V 100ppm/DegC 50uA SOT23-3 Series |
Data Sheet |
|
|
||||||||||||||
|
REF2920AIDBZTG4 |
Texas Instruments |
Voltage & Current References 2.048V 100ppm/DegC 50uA SOT23-3 Series |
Data Sheet |
|
|
||||||||||||||
