PT2313L

PT2313L, processor, 3.6 K, 1.25 dB, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.52~0.52 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10000 :	0.52 / Piece

PartNumber:: PT2313L

Brand:: Princeton Technology Corp - PTC | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 4/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-04

From Other Seller

Part Number:PT2313L
US $0.52 - 0.52
Quantity:

piece

Product Summary

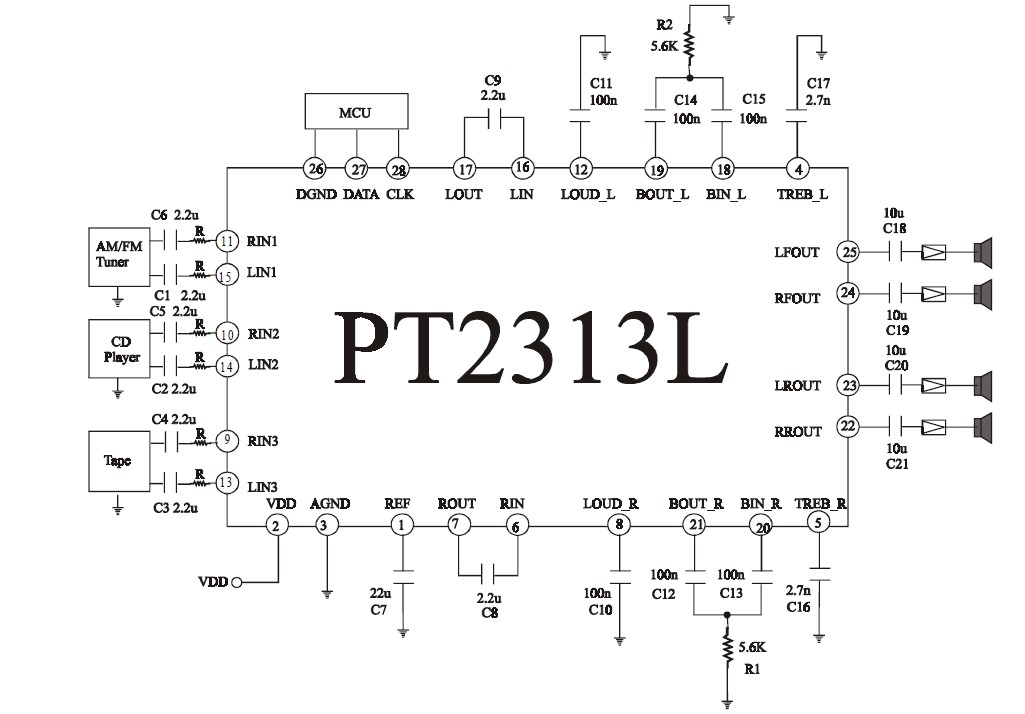

The PT2313L is a four-channel digital control audio processor utilizing CMOS Technology. Volume, Bass, Treble and Balance, Front/Rear Fader Processor are incorporated into a single chip. Loudness Function and Selectable Input Gain of the PT2313L are also provided to build a highly effective electronic audio processor having the highest performance and reliability with the least external components. All functions of the PT2313L are programmable using the I2C Bus. The pin assignments and application circuit of the PT2313L are optimized for easy PCB layout and cost saving advantage for audio application. Housed in a 28-pin DIP/SO Package, the PT2313L is pin-to-pin compatible with TDA7313 and is very similar in performance with the later.

Parametrics

PT2313L maximum ratings: (1)The Resistor Range: 2.0K Ohms to 3.6 K Ohms.; (2)Resistor Recommended Value: 2.4 K Ohms.

Features

PT2313L features: (1)CMOS Technology; (2)Least External Components; (3)Treble and Bass Control; (4)Loudness Function; (5)3 Stereo Inputs with Selectable Input Gain; (6)Input/Output for External Noise Reduction System/Equalizer; (7)4 Independent Speaker Controls for Fader and Balance; (8)Independent Mute Function; (9)Volume Control in 1.25 dB/step; (10)Low Distortion; (11)Low Noise and DC Stepping; (12)Controlled by I2C Bus Micro-Processor Interface; (13)Pin-to-pin Compatible with TDA7313.
