Product Summary
ThePDI1394L40BE is a Philips Semiconductors Full Duplex 1394 Audio/Video (AV) Link Layer Controller, is an IEEE 1394a–2000 compliant link layer controller featuring 2 embedded AV layer interfaces.
Parametrics
PDI1394L40BE absolute maximum ratings: (1)DC supply voltage: –0.5 to +4.6 V; (2)DC input diode current: –50 mA; (3)DC input voltage: –0.5 to +5.5 V; (4)DC output diode current: ±50 mA; (5)DC output voltage: –0.5 to VDD +0.5 V; (6)DC output source or sink current: ±50 mA; (7)DC VCC or GND current: ±150 mA; (8)Storage temperature range: –60 to 150 °C; (9)Operating ambient temperature: 0 to 70 °C; (10)Power dissipation per package: 0.6 W.
Features
PDI1394L40BE features: (1)IEEE1394a and IEEE1394–1995 Standard Link Layer Controller; (2)Hardware Support for the IEC61883 International Standard of Digital Interface for Consumer Electronics; (3)Interface to any IEEE 1394–1995 or 1394a Physical Layer Interface; (4)5 V Tolerant I/Os; (5)Single 3.3 V supply voltage; (6)Full-duplex isochronous operation; (7)Operates with 400/200/100 Mbps physical layer devices; (8)12K byte fully programmable FIFO pool for isochronous and asynchronous data.

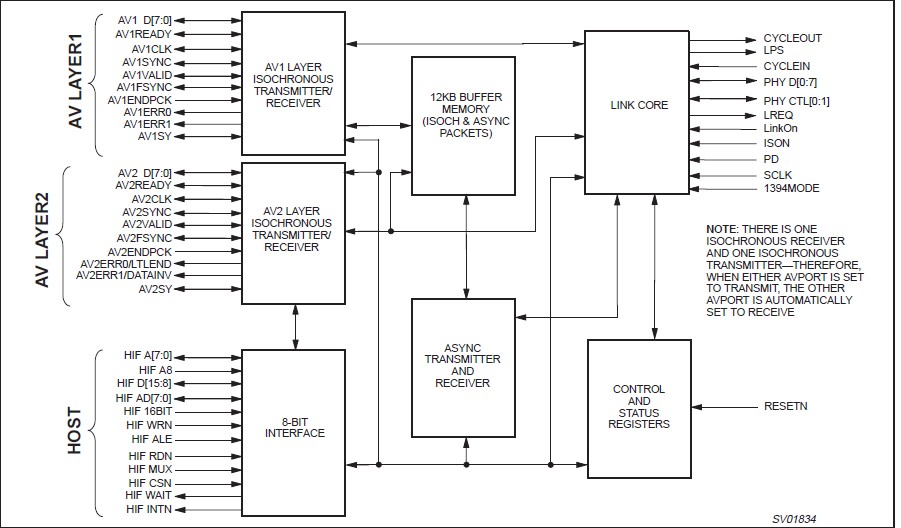

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PDI1394L40BEGA |
|
IC IEEE 1394 LINK CTRLR 144-LQFP |
Data Sheet |
Negotiable |
|
||||
|
PDI1394L40BEGE |
|
IC LINK LAYER CTRLR AV 144LQFP |
Data Sheet |
Negotiable |
|
||||
 |
PDI1394L40BE-S |
NXP Semiconductors |
1394 Interface IC IEEE 1394 LINK CTRLR |
Data Sheet |
Negotiable |
|
||||
|
PDI1394L40BE-T |
NXP Semiconductors |
Video ICs 1394 A/V LINK LAYER |
Data Sheet |
Negotiable |
|
||||
|
PDI1394L40BEUM |
|
IC LINK LAYER CTRLR AV 144LQFP |
Data Sheet |
Negotiable |
|
||||
