Product Summary
The MM74HC86MTCX is an exclusive OR gate. It utilizes advanced silicon-gate CMOS technology to achieve operating speeds similar to equivalent LS-TTL gates while maintaining the low power consumption and high noise immunity characteristic of standard CMOS integrated circuits. The MM74HC86MTCX gate is fully buffered and have a fanout of 10 LS-TTL loads. The 74HC logic family is functionally as well as pin out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.
Parametrics
MM74HC86MTCX absolute maximum ratings: (1)Supply Voltage (VCC): -0.5 to +7.0V; (2)DC Input Voltage (VIN): -1.5 to VCC +1.5V; (3)DC Output Voltage (VOUT): -0.5 to VCC +0.5V; (4)Clamp Diode Current (IIK, IOK): ±20 mA; (5)DC Output Current, per pin (IOUT): ±25 mA; (6)DC VCC or GND Current, per pin (ICC): ±50 mA; (7)Storage Temperature Range (TSTG): -65°C to +150°C; (8)Power Dissipation (PD)(Note 3): 600 mW; (9)Power Dissipation (PD)S.O. Package only: 500 mW; (10)Lead Temperature (TL)(Soldering 10 seconds): 260°C.
Features
MM74HC86MTCX features: (1)Typical propagation delay: 9 ns; (2)Wide operating voltage range: 2–6V; (3)Low input current: 1 μA maximum; (4)Low quiescent current: 20 μA maximum (74 Series); (5)Output drive capability: 10 LS-TTL loads.

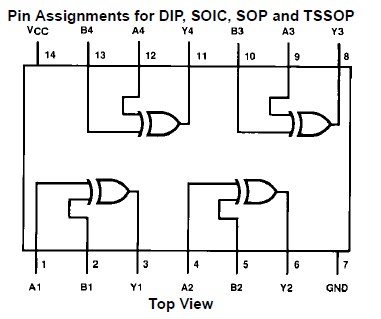

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MM74HC86MTCX |
Fairchild Semiconductor |
Gates (AND / NAND / OR / NOR) Quad 2-Input OR Gate |
Data Sheet |
|
|
||||||||||||
 |
MM74HC86MTCX_1160255 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
