Product Summary
The MCP1703T-3002E/CB is a CMOS low dropout voltage regulator that can deliver up to 250mA of current while consuming only 2.0μA of quiescent current. Its applications include battery-powered devices, battery-powered alarm circuits, smoke detectors, digital cameras, consumer products, battery powered data loggers.
Parametrics
MCP1703T-3002E/CB absolute maximum ratings: (1)VDD: +18V; (2)All inputs and outputs wrt: VSS-0.3V to VIN+0.3V; (3)Peak output current: 500mA; (4)Storage temperature: -65 to +150℃; (5)Maximum junction temperature: 150℃; (6)Operating junction temperature: -40℃ to 125℃; (7)ESD protection on all pins: ≥4kV.
Features
MCP1703T-3302E/MB features: (1)2.0μA Typical quiescent current; (2)Input operating voltage range: 2.7V to 16V; (3)250mA output current for output voltages≥2.5V; (4)Low drop out voltage, 625mV typical @250mA for VR=2.8V; (5)Stable with 1.0μF to 22μF output capacitance; (6)Short-circuit protection; (7)Overtemperature protection.

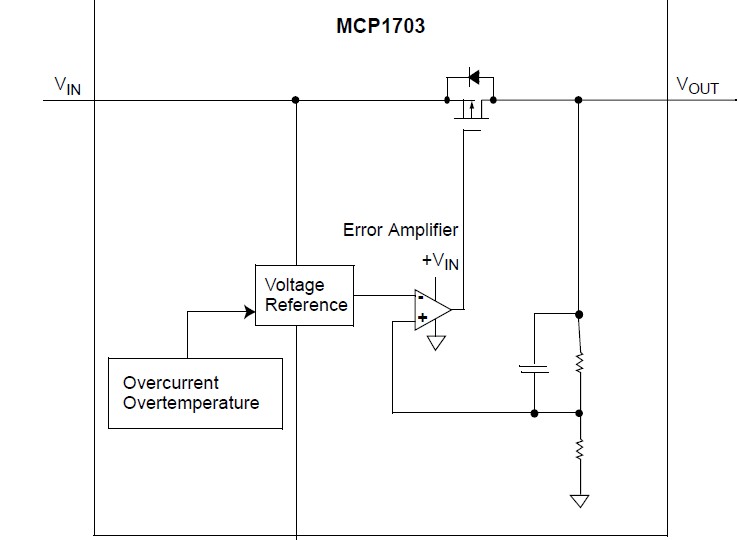

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MCP1703T-3302E/MB |
Microchip Technology |
Low Dropout (LDO) Regulators Low Iq 250mA LDO Vin 16V maxVout 3.3V |
Data Sheet |
|
|
||||||||||||
