Product Summary

The MC74HCT374ADWR2 is an Octal 3-State Noninverting D Flip-Flop with LSTTL. The MC74HCT374ADWR2 may be used as a level converter for interfacing TTL or NMOS outputs to High–Speed CMOS inputs. The MC74HCT374ADWR2 is identical in pinout to the LS374.

Parametrics

MC74HCT374ADWR2 absolute maximum ratings: (1)DC Supply Voltage (Referenced to GND): -0.5 to + 7.0 V; (2)DC Input Voltage (Referenced to GND): -0.5 to Vcc + 0.5 V; (3)DC Output Voltage (Referenced to GND): -0.5 to Vqq + 0.5 V; (4)DC Input Current, per Pin: ±20 mA; (5)DC Output Current, per Pin: ±35 mA; (6)DC Supply Current, Vcc and GND Pins: ±75 mA; (7)Power Dissipation in Still Air, Plastic DIPt: 750 mW; (8)Power Dissipation in Still Air, SOIC Packaget: 500 mW; (9)Power Dissipation in Still Air, TSSOP Packaget: 450 mW; (10)Storage Temperature: -65 to + 150 °C; (11)Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP, SOIC, SSOP or TSSOP Package): 260 °C.

Features

MC74HCT374ADWR2 features: (1)Output Drive Capability: 15 LSTTL Loads; (2)TTL/NMOS–Compatible Input Levels; (3)Outputs Directly Interface to CMOS, NMOS, and TTL; (4)Operating Voltage Range: 4.5 to 5.5 V; (5)Low Input Current: 1.0 mA; (6)In Compliance with the Requirements Defined by JEDEC Standard No. 7A; (7)Chip Complexity: 276 FETs or 69 Equivalent Gates; (8)Improvements over HCT374 : Improved Propagation Delays; 50% Lower Quiescent Power; Improved Input Noise and Latchup Immunity.

Diagrams

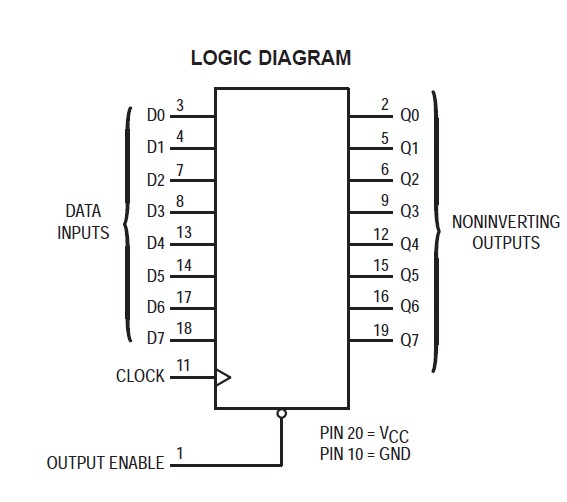

MC74HCT374ADWR2 pin connection
