Product Summary
The MB40768PF-G-BND is a low-power and high-speed 8-bit D/A converter. The digital input is TTL compatible and the analog output voltage is 3 to 5 V. Maximum conversion speed is 60MHz. The internal reference voltage provided has two types of resistor division scheme and band-gap reference scheme; the external reference voltage may also be used. The MB40768PF-G-BND is suitable for high-definition TV or VCR application.
Parametrics
MB40768PF-G-BND absolute maximum ratings: (1)Analog power supply voltage: –0.5 to +7.0V; (2)Digital power supply voltage: –0.5 to +7.0V; (3)Power supply voltage difference: 1.5V; (4)Digital signal input voltage: –0.5 to +7.0V; (5)Storage temperature: –55℃ to +125℃.
Features
MB40768PF-G-BND features: (1)Resolution: 8 bits; (2)Conversion characteristics: Maximum conversion rate: 60 MSPS(min.); (3)Linearity error: ±0.2 % (max.); (4)I/O: Digital input voltage: TTL level; (5)Analog output voltage: 2VP-P (3 to 5 V); (6)Reference voltage: VROUT1: Resistor division circuit(0.6 VCCA); (7)VROUT2: Band-gap reference circuit (VCCA - 2 V); (8)Power supply voltage: +5 V single power supply; (9)Power consumption: 160 mW (typical value for the analog output voltage of 2 VP-P), 120 mW (typical value for the analog output voltage of 1 VP-P).

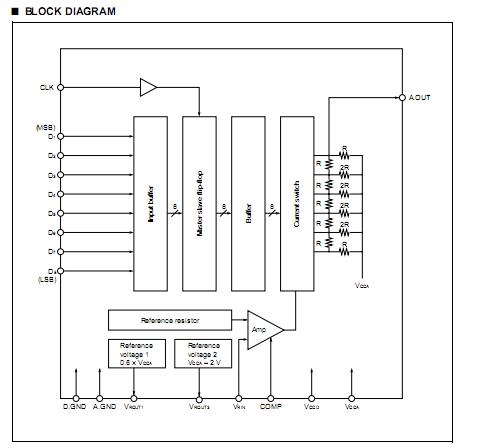

Diagrams
