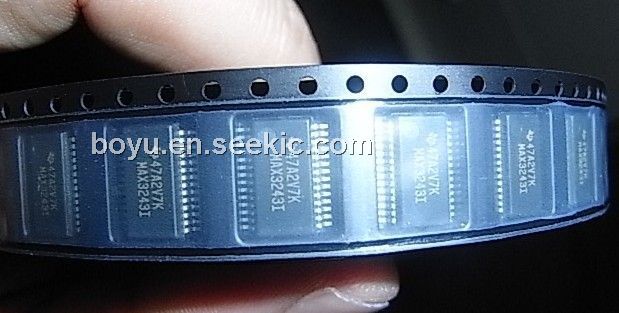

MAX3243IDBR

MAX3243IDBR, Transceiver, 1μA, 6V, 15kV, SSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.40~0.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10000 :	0.40 / Piece

PartNumber:: MAX3243IDBR

Brand:: Maxim Integrated Products - Maxim | Pack: SSOP | D/C: 10+

Availability:: Supply Ability: 4/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-04

From Other Seller

Part Number:MAX3243IDBR
US $0.40 - 0.40
Quantity:

piece

Product Summary

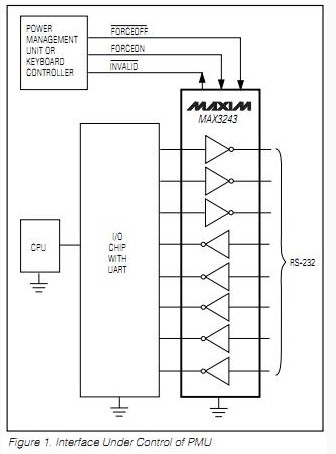

The MAX3243IDBR is a 1μA Supply-Current, True +3V to +5.5V RS-232 Transceiver with AutoShutdown. The MAX3243IDBR achieves 1μA supply current with Maxim revolutionary AutoShutdown feature. When the MAX3243IDBR does not sense a valid signal level on its receiver inputs, the on-board power supply and drivers shut down. This occurs if the RS-232 cable is disconnected or if the transmitters of the connected peripheral are turned off. The applications of the MAX3243IDBR include Notebook, Subnotebook, and Palmtop Computers, Battery-Powered Equipment, Hand-Held Equipment, Peripherals and Printers.

Parametrics

MAX3243IDBR absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)V+: -0.3V to +7V; (3)V-: +0.3V to -7V; (4)V+ + |V-|: +13V; (5)Input Voltages, R_IN: ±25V; (6)Output Voltages, T_OUT: ±13.2V; (7)R_OUT, INVALID: .-0.3V to (VCC + 0.3V); (8)Short-Circuit Duration, T_OUT: Continuous; (9)Continuous Power Dissipation: 571mW; (10)Operating Temperature Ranges: 0 to +70℃; (11)Storage Temperature Range: -65 to +150℃; (12)Lead Temperature (soldering, 10s): +300℃.

Features

MAX3243IDBR features: (1)For Space-Constrained Applications: +2.5V to +5.5V RS-232 Transceivers in UCSP; (2)For Integrated ESD Protection: ±15kV ESD-Protected, Down to 10nA, 3.0V to 5.5V, Up to 1Mbps, True RS-232; (3)Transceivers; (4)For Low-Voltage or Data Cable Applications: +2.5V to +5.5V, 1μA, 2 Tx/2 Rx RS-232 Transceivers with ±15kV ESD-Protected I/O and Logic Pi.
