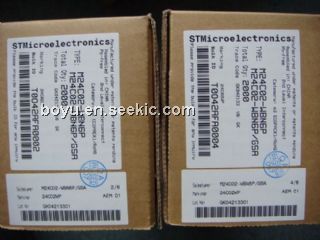

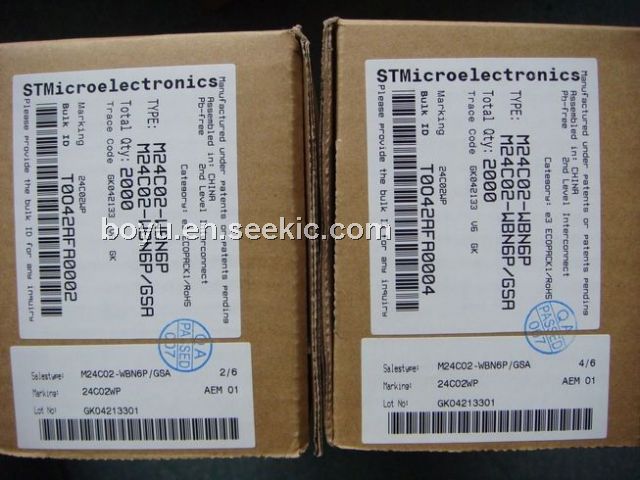

M24C02

M24C02, EEPROM, 6.5V, 400kHz, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10000 :	0.20 / Piece

PartNumber:: M24C02

Brand:: STMicroelectronics - ST | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 4/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-04

From Other Seller

Part Number:M24C02
US $0.20 - 0.20
M24C02-WMN6T

US $0.70 - 0.90 / Piece
(0) Remove
Quantity:

piece

Product Summary

The M24C02 is I2C-compatible electrically erasable programmable memory (EEPROM) device. The M24C02 is organized as 256 x 8. When writing data to the memory, the M24C02 inserts an acknowledge bit during the 9th bit time, following the bus master 8-bit transmission.When data is read by the bus master, the bus master acknowledges the receipt of the data byte in the same way. Data transfers of the M24C02 are terminated by a Stop condition after an Ack for Write, and after a NoAck for Read.

Parametrics

M24C02 absolute maximum ratings:(1)Storage Temperature, TSTG: –65 to 150℃; (2)Lead Temperature during Soldering See note, TLEAD: 1℃; (3)Input or Output range, VIO: –0.50 to 6.5V; (4)Supply Voltage, VCC: –0.50 to 6.5V; (5)Electrostatic Discharge Voltage (Human Body model), VESD: –4000 to 4000V.

Features

M24C02 features: (1)Two Wire I2C Serial Interface; (2)Supports 400kHz Protocol; (3)Packages– ECOPACK(RoHS compliant); (4)Write Control Input; (5)BYTE and PAGE WRITE (up to 16 Bytes); (6)RANDOM and SEQUENTIAL READ Modes; (7)Self-Timed Programming Cycle; (8)Automatic Address Incrementing; (9)Enhanced ESD/Latch-Up Behavior; (10)More than 1 Million Erase/Write Cycles; (11)More than 40 Year Data Retention.
