LT1039CSW

LT1039CSW, receiver, 30V, 15kV, 30kW, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	3.00 / Piece

PartNumber:: LT1039CSW

Brand:: Linear Technology - Linear | Pack: SOP | D/C: 07+

Availability:: Supply Ability: 4/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-04

From Other Seller

Part Number:LT1039CSW
US $3.00 - 3.00
Quantity:

piece

Product Summary

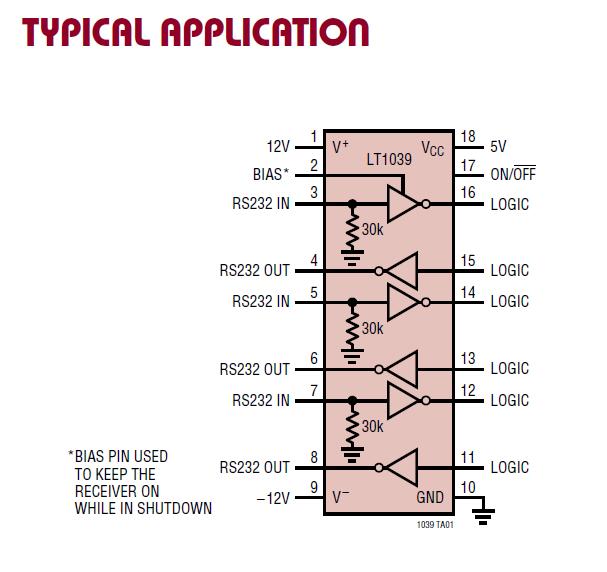

The LT1039CSW is a triple RS232 driver/receiver that includes shutdown. Each receiver will accept up to ±30V input and can drive either TTL or CMOS logic. The RS232 drivers accept TTL logic inputs and output RS232 voltage levels. The outputs are fully protected against overload and can be shorted to ground or up to ±30V without damage to the drivers. Additionally, when the system is shut down or power is off, the outputs are in a high impedance state allowing data line sharing. Bipolar circuitry makes this driver/receiver exceptionally rugged against overloads or ESD damage. The applications of the LT1039CSW include RS232 Interface, Terminals, Modems.

Parametrics

LT1039CSW absolute maximum ratings: (1)Supply Voltage, Driver (V+, V–): ±16V; Receiver (VCC): 7V; (2)Logic Inputs: V- to 25V; (3)Receiver Inputs: ±30V; (4)ON/OFF Input: GND to 12V; (5)Driver Outputs: (V- +30V) to (V+ -30V); (6)Short-Circuit Duration: Indefinite; (7)Operating Temperature Range: 0℃ to 70℃; (8)Storage Temperature Range: -65℃ to 150℃; (9)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LT1039CSW features: (1)Operates from ±5V to ±15V Supplies; (2)Fully Protected Against Overload; (3)Outputs Can Be Driven ±30V Without Damage; (4)Three-State Outputs; Outputs Open When Off; (5)Bipolar Circuit—No Latchup; (6)±30V Input Range; (7)Triple Driver/Receiver; (8)No Supply Current in Shutdown; (9)30kW Input Impedance; (10)Meets All RS232 Specifications; (11)16-Pin Version—Pin Compatible with MC145406; (12)Available in SO Package; (13)15kV ESD: LT1039C.
