LP3990TLX-1.5

LP3990TLX-1.5, linear voltage regulator, 150 mA, 0.8 V, 0.47 μF, 2 KV, BGA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 3000 :	1.00 / Piece

PartNumber:: LP3990TLX-1.5

Brand:: National Semiconductor - NS | Pack: BGA | D/C: 06+

Availability:: Supply Ability: 4/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-20

From Other Seller

Part Number:LP3990TLX-1.5
US $1.00 - 1.00
Quantity:

piece

Product Summary

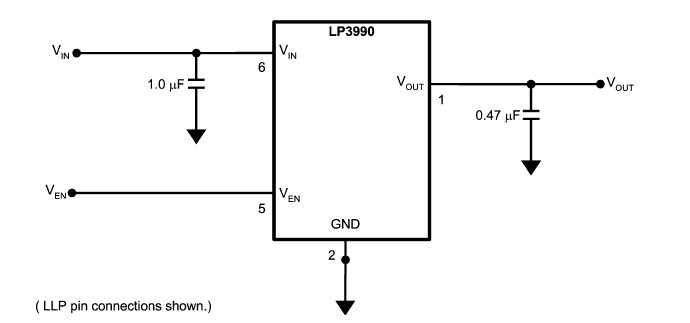

The LP3990TLX-1.5 is a 150mA linear voltage regulator for digital applications. It is designed to meet the requirements of portable, battery-powered systems providing an accurate output voltage, low noise, and low quiescent current. The LP3990TLX-1.5 will provide a 0.8V output from the low input voltage of 2V at up to 150mA load current. When switched into shutdown mode via a logic signal at the enable pin, the power consumption is reduced to virtually zero. The LP3990TLX-1.5 is designed to be stable with space saving ceramic capacitors as small as 0.47μF. Applications are (1)Cellular handsets; (2)Hand-held information appliances.

Parametrics

LP3990TLX-1.5 absolute maximum ratings: (1)Input Voltage: -0.3 to 6.5V; (2)Output Voltage: -0.3 to (VIN + 0.3V)to 6.5V (max); (3)Enable Input Voltage: -0.3 to (VIN + 0.3V)to 6.5V (max); (4)Junction Temperature: 150°C; (5)Lead/Pad Temp. (Note 3)LLP/SOT23: 235°C; (6)Lead/Pad Temp. (Note 3)micro SMD: 260°C; (7)Storage Temperature: -65 to 150°C; (8)Continuous Power Dissipation Internally Limited(Note 4)ESD (Note 5)Human Body Model: 2KV; (9)Continuous Power Dissipation Internally Limited(Note 4)Machine Model: 200V.

Features

LP3990TLX-1.5 features: (1)1% Voltage Accuracy at Room Temperature; (2)Stable with Ceramic Capacitor; (3)Logic Controlled Enable; (4)No Noise Bypass Capacitor Required; (5)Thermal-Overload and Short-Circuit Protection.
