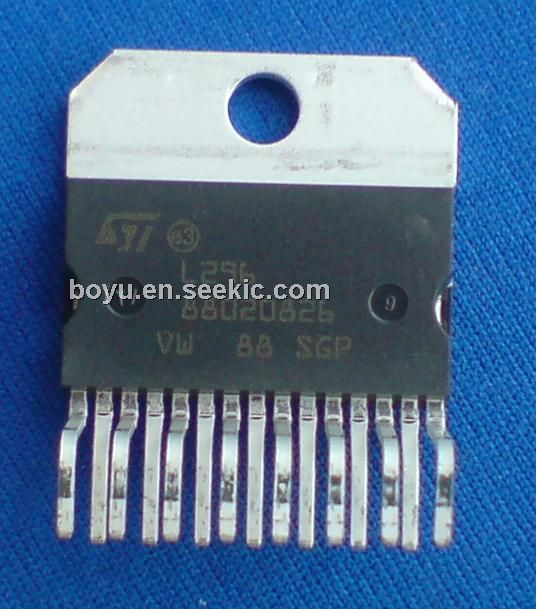

L296

L296, regulator, 4A, 5.1V, 50mA, 20W, ZIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10000 :	1.00 / Piece

PartNumber:: L296

Brand:: STMicroelectronics - ST | Pack: ZIP | D/C: 08+

Availability:: Supply Ability: 4/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-04

From Other Seller

Part Number:L296
US $1.00 - 1.00
Quantity:

piece

Product Summary

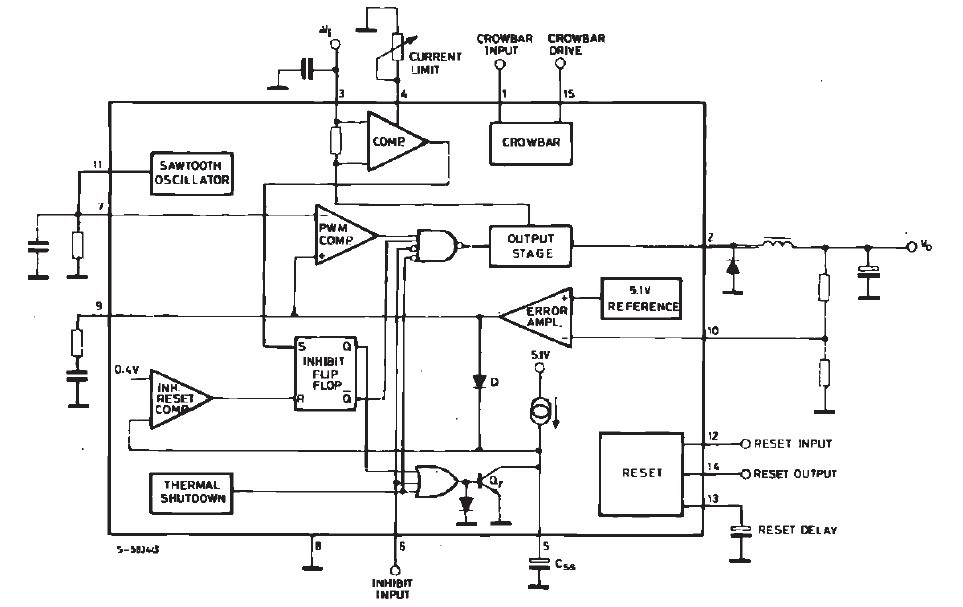

The L296 is a step down power switching regulator delivering 4A at a voltage variable from 5.1V to 40V. Features of the device include soft start,remote inhibit, thermal protection, a reset output for microprocessors and a PWM comparator input for synchronization in multichip configurations.

Parametrics

L296 absolute maxing ratings: (1)Vi Input Voltage(pin 3): 50V; (2)Vi-V2 Input to Output Voltage Difference: 50V; (3)V2 Output DC Voltage: -1V; Output Peak Voltage at t=0.1μsec f=200KHz: -7V; (4)V1, V12 Voltage at Pins 1, 12: 10V; (5)V15 Voltage at Pin 15: 15V; (6)V4, V5, V7, V9, V13 Voltage at Pins 4, 5, 7, 9 and 13: 5.5V; (7)V10, V6 Voltage at Pins 10 and 6: 7V; (8)V14 Voltage at Pin 14 (I14≤1mA): Vi; (9)I9 Pin 9 Sink Current: 1mA; (10)I11 Pin 11 Source Current: 20mA; (11)I14 Pin 14 Sink Current (V14<5V): 50mA; (12)Ptot Power Dissipation at Tcase≤90℃: 20W; (13)Tj, Tstg Junction and Storage Temperature: -40 to 150℃.

Features

L296 features: (1)4A output current; (2)5.1V to 40V output voltage range; (3)0 to 100% duty cycle range; (4)precise(±2%)on-chip reference; (5)switching frequency up to 200KHz; (6)very high efficiency(up to 90%); (7)very few external components; (8)soft start; (9)reset output external programmable limiting; (10)current(L296P); (11)control circuit for crowbar SCR input for remote inhibit and; (12)synchronus PWM; (13)thermal shutdown.
