Product Summary

The FR107 is a fast recover rectifier.

Parametrics

FR107 absolute maximum ratings: (1)Maximum Repetitive Peak Reverse Voltage VRRM: 1000 Volts; (2)Maximum RMS Voltage VRMS: 700 Volts; (3)Maximum DC Blocking Voltage VDC: 1000 Volts; (4)Maximum Average Forward Rectified Current 0.375(9.5mm)lead length at TA= 75℃ I(AV): 1.0 Amp; (5)Peak Forward Surge Current 8.3mS single half sine wave superimposed on rated load (JEDEC method)IFSM: 30 Amps; (6)Maximum Instantaneous Forward Voltage@ 1.0A VF: 1.3 Volts; (7)Maximum DC Reverse Current at Rated TA = 25℃ 5.0 DC Blocking Voltage TA = 100℃ IR: 100 μA; (8)Maximum Reverse Recovery Time (Note 3)TJ=25℃ trr: 500 ns; (9)Typical Junction Capacitance (Note 1)CJ: 15 pF; (10)Typical Thermal Resistance (Note 2)RθJA: 50 ℃/W; (11)Operating Junction Temperature Range TJ: (-55 to +150)℃; (12)Storage Temperature Range TSTG: (-55 to +150)℃.

Features

FR107 features: (1)Low coat construction; (2)Fast switching for high efficency.; (3)Low reverse leakage; (4)High forward surge current capability; (5)High temperature soldering guaranteed: 260℃/10 secods/.375”(9.5mm)lead length at 5 lbs(2.3kg)tension.

Diagrams

FR107 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

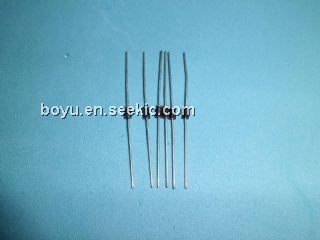

FR107-B
FR107-B
Rectron
Rectifiers 1A 1000V 150ns
Data Sheet
0-1000: $0.04
1000-2000: $0.03
2000-5000: $0.03
5000-10000: $0.02
FR107-T
FR107-T
Rectron
Rectifiers 1A 1000V 150ns
Data Sheet
0-5000: $0.06
5000-10000: $0.06
10000-20000: $0.05
20000-50000: $0.03
FR107SG
FR107SG
Taiwan Semiconductor
Rectifiers 1.0 Amp 1000 Volt 150ns
Data Sheet
0-15000: $0.03
FR107S
FR107S
Taiwan Semiconductor
Rectifiers 1.0 Amp 1000 Volt 150ns
Data Sheet
0-15000: $0.02
FR107P
FR107P
Other

Data Sheet
Negotiable
FR107G-T
FR107G-T
Rectron
Rectifiers 1A 1000V 150ns GP
Data Sheet
0-5000: $0.12
5000-10000: $0.11
10000-20000: $0.09
20000-50000: $0.05
FR107G-STR
FR107G-STR
Other

Data Sheet
Negotiable
FR107GP
FR107GP
Other

Data Sheet
Negotiable
