Product Summary

The DAC1219LCJ is a 12-bit binary, 4-quadrant multiplying D to A converter. The linearity, differential non-linearity and monotonicity specifications for these converters are all guaranteed over temperature. In addition, the DAC1219LCJ parameter is specified with standard zero and fullscale adjustment procedure as opposed to the impractical best fit straight line guarantee.

Parametrics

DAC1219LCJ absolute maximum ratings: (1)Supply Voltage (VCC): 17 VDC; (2)Voltage at Any Digital Input: VCC to GND; (3)Voltage at VREF Input: ±25V; (4)Storage Temperature Range: ﹣65℃ to ﹢150℃; (5)Package Dissipation at: 500 mW; (6)DC Voltage Applied to IOUT1 or IOUT2: ﹣100 mV to VCC; (7)Lead Temp (Soldering, 10 seconds): 300℃; (8)ESD Susceptibility (Note 11): 800V.

Features

DAC1219LCJ features: (1)Linearity specified with zero and full-scale adjust only; (2)Y Logic inputs which meet TTL voltage level specs (1.4V logic threshold); (3)Y Works with ±10V reference—full 4-quadrant multiplication; (4)Y All parts guaranteed 12-bit monotonic.


Diagrams

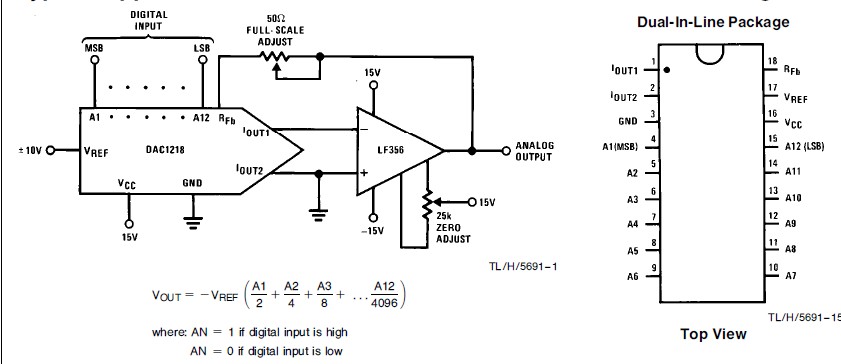

DAC1219LCJ pin connection
