Product Summary

The BD137 is a power transistor. The BD137 is designed for use as audio amplifiers and drivers utilizing complementary or quasi complementary circuits.

Parametrics

BD137 absolute maximum ratings: (1)Collector-Emitter Voltage: 60V; (2)Collector-Base Voltage: 60V; (3)Collector Current - Continuous IC: 1.5 Adc; (4)Total Device Dissipation FR- 5 Board, (Note 1)TA = 25°C Derate above 25°C PD: 1.25 W; (5)Junction and Storage Temperature Range TJ, Tstg: -55 to +150 °C.

Features

BD137 features: (1)DC Current Gain — hFE = 40 (Min)@ IC = 0.15 Adc; (2)BD 135, 137, 139 are complementary with BD 136, 138, 140.

Diagrams

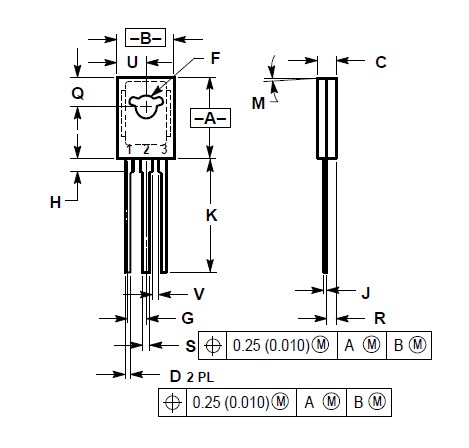

BD137 pin connection
