ADUM1201AR

Product Summary

The ADuM1201AR is a Dual-Channel Digital Isolator based on Analog Devices iCoupler technology. Combining high speed CMOS and monolithic transformer technology, these isolation components provide outstanding performance characteristics superior to alternatives such as optocoupler devices. The ADuM1201AR provides two independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide). Both parts operate with the supply voltage on either side ranging from 2.7 V to 5.5 V, providing compatibility with lower voltage systems as well as enabling a voltage translation functionality across the isolation barrier. The applications of the ADuM1201AR are Size-critical multichannel isolation, SPI interface/data converter isolation, RS-232/RS-422/RS-485 transceiver isolation, Digital field bus isolation.

Parametrics

ADuM1201AR absolute maximum ratings: (1)Storage Temperature:-55℃ to 150℃; (2)Ambient Operating Temperature:-40℃ to 105℃; (3)Supply Voltages:-0.5V to 7.0V; (4)Input Voltage:-0.5V to VDDI+0.5V; (5)Output Voltage:-0.5V to VDDO+0.5V ; (6)Average Output Current, per Pin3:-35mA to 35mA; (7)Common-Mode Transients:-100kV/μs to +100kV/μs.

Features

ADuM1201AR features: (1)Narrow body SOIC 8-lead package ; (2)Low power operation: 5 V operation: 1.1 mA per channel maximum @ 0 Mbps to 2 Mbps, 3.7 mA per channel maximum @ 10 Mbps, 8.2 mA per channel maximum @ 25 Mbps; 3 V operation: 0.8 mA per channel maximum @ 0 Mbps to 2 Mbps, 2.2 mA per channel maximum @ 10 Mbps , 4.8 mA per channel maximum @ 25 Mbps ; (3)Bidirectional communication ; (4)3 V/5 V level translation ; (5)High temperature operation: 105℃; (6)High data rate: dc to 25 Mbps (NRZ) ; (7)Precise timing characteristics ; (8)3 ns maximum pulse-width distortion ; (9)3 ns maximum channel-to-channel matching ; (10)High common-mode transient immunity: > 25 kV/μs ; (11)Safety and regulatory approvals ; (12)UL recognition:2500 V rms for 1 minute per UL 1577 ; (13)CSA component acceptance notice #5A ; (14)VDE certificate of conformity ; (15)DIN EN 60747-5-2 (VDE 0884 Part 2): 2003-01 ; (16)DIN EN 60950 (VDE 0805): 2001-12; DIN EN 60950: 2000 ; (17)VIORM = 560 V peak.

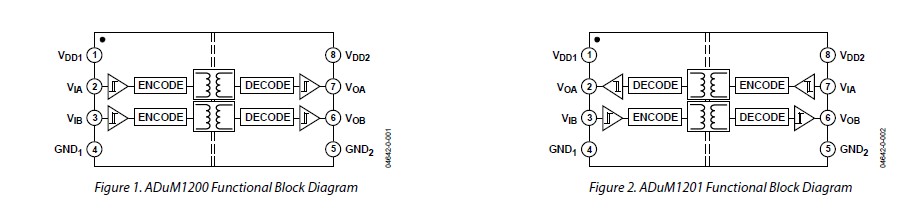

Diagrams
