Product Summary
The ADV7196AKS is a triple high-speed, digital-to-analog encoder on a single monolithic chip. It consists of three high-speed video D/A converters with TTL-compatible inputs. The ADV7196AKS has three separate 10-bit-wide input ports which accept data in 4:4:4 10-bit YCrCb or RGB or 4:2:2 10-bit YCrCb. This data is accepted in progressive scan format at 27 MHz or HDTV format at 74.25 MHz or 74.1758 MHz. Applications are (1)Progressive Scan/HDTV Display Devices; (2)DVD Players; (3)MPEG 2 at 81 MHz; (4)Progressive Scan/HDTV Projection Systems; (5)Digital Video Systems; (6)High Resolution Color Graphics; (7)Image Processing/Instrumentation; (8)Digital Radio Modulation/Video Signal Reconstruction.
Parametrics
ADV7196AKS absolute maximum ratings: (1)VAA to GND: 7 V; (2)Voltage on Any Digital Pin GND: -0.5 V to VAA + 0.5 V; (3)Ambient Operating Temperature (TA): –40°C to +85°C; (4)Storage Temperature (TS): –65°C to +150°C; (5)Infrared Reflow Soldering (20 secs): 225°C; (6)Vapor Phase Soldering (1 minute): 220°C; (7)IOUT to GND2: 0 V to VAA.
Features
ADV7196AKS features: (1)Gamma Correction; (2)Individual DAC On/Off Control; (3)54 MHz Output (2× Oversampling); (4)Sharpness Filter with Programmable Gain/Attenuation; (5)Programmable Adaptive Filter Control; (6)Undershoot Limiter; (7)I2C Filter; (8)VBI Open Control; (9)Macrovision Rev. 1.0 (525p); (10)CGMS-A (525p); (11)2-Wire Serial MPU Interface; (12)Single Supply 3.3 V Operation; (13)52-MQFP Package.

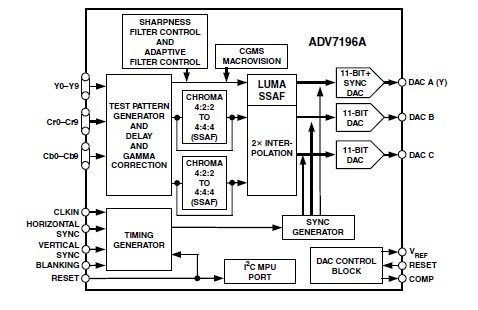

Diagrams
