Product Summary
The ADC1205CCJ-1 is a CMOS, 12-bit plus sign successive approximation A/D converter. The 24-pin ADC1205CCJ-1 outputs the 13-bit data result in two 8-bit bytes, formatted high-byte first with sign extended. Negative numbers are represented in 2s complement data format. All digital signals are fully TTL and MOS compatible. A unipolar input (0V to 5V) can be accommodated with a single 5V supply, while a bipolar input (b5V to a5V) requires the addition of a 5V negative supply. The ADC1205CCJ-1 has a maximum non-linearity of 0.0224% of Full Scale.
Parametrics
ADC1205CCJ-1 absolute maximum ratings: (1)Supply Voltage (DVCC and AVCC): 6.5V; (2)Negative Supply Voltage (V-): -15V to GND; (3)Logic Control Inputs: -0.3V to 15V; (4)Voltage at Analog Inputs [VIN(+), VIN(-)]: (V-)-0.3V to VCC+0.3V; (5)Voltage at All Outputs, VREF, VOS: -0.3V to (VCC+0.3)V; (6)Input Current per Pin: ±5mA; (7)Input Current per Package: ±20mA; (8)Storage Temperature Range: -65 to 150℃; (9)Package Dissipation at TA=25℃: 875 mW; (10)Lead Temp. (Soldering, 10 seconds): 300℃; (11)ESD Susceptibility: 800V.
Features
ADC1205CCJ-1 features: (1)Compatible with all mPs; (2)True differential analog voltage inputs; (3)0V to 5V analog voltage range with single 5V supply; (4)TTL/MOS input/output compatible; (5)Low powerD25 mW max; (6)Standard 24-pin or 28-pin DIP.

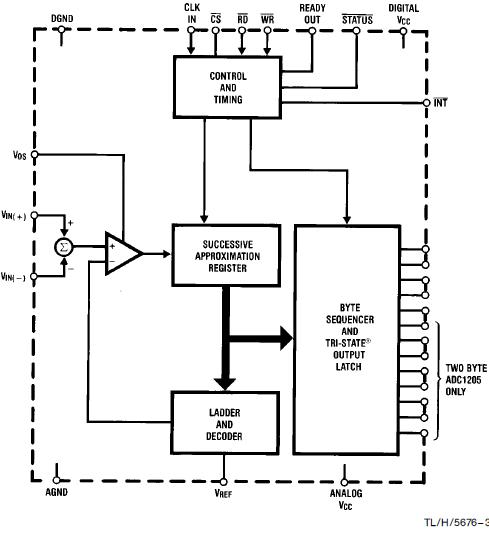

Diagrams
