Product Summary
The AD8554AR amplifier has ultralow offset, drift, and bias current. The AD8554AR is single, dual, and quad amplifier featuring rail-to-rail input and output swings. The AD8554AR is guaranteed to operate from 2.7 V to 5 V with a single supply. Applications are (1)Temperature sensors; (2)Pressure sensors; (3)Precision current sensing; (4)Strain gage amplifiers; (5)Medical instrumentation; (6)Thermocouple amplifiers.
Parametrics
AD8554AR absolute maximum ratings: (1)Supply Voltage: 6 V; (2)Input Voltage: GND to VS + 0.3 V; (3)Differential Input Voltage: ±5.0 V; (4)ESD (Human Body Model): 2000 V; (5)Storage Temperature Range: -65°C to +150°C; (6)Operating Temperature Range: -40°C to +125°C; (7)Junction Temperature Range: -65°C to +150°C; (8)Lead Temperature Range (Soldering, 60 sec): 300°C.
Features
AD8554AR features: (1)Low offset voltage: 1 μV; (2)Input offset drift: 0.005 μV/°C Rail-to-rail input and output swing; (3)5 V/2.7 V single-supply operation; (4)High gain, CMRR, PSRR: 130 dB Ultralow input bias current: 20 pA; (5)Low supply current: 700 μA/op amp; (6)Overload recovery time: 50 μs No external capacitors required.

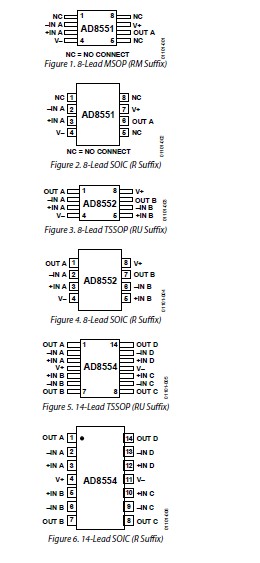

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

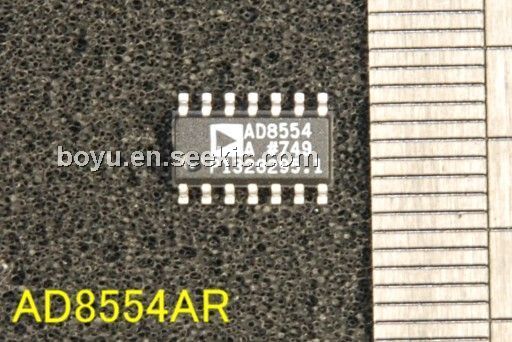

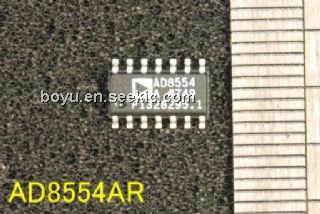

 AD8554AR |
|
IC OPAMP CHOPPER R-R QUAD 14SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
AD8554AR-REEL |
|
IC OPAMP CHOPPER R-R QUAD 14SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
AD8554AR-REEL7 |
|
IC OPAMP CHOPPER R-R QUAD 14SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||||||
 |
AD8554ARUZ |
|
IC OPAMP CHOPPER R-R 14TSSOP |
Data Sheet |
|
|
||||||||||||||||||
 |
AD8554ARU |
Analog Devices Inc |
IC OPAMP QUAD R-R I/O 14-TSSOP |
Data Sheet |
|
|
||||||||||||||||||
|
AD8554ARU-REEL |
Analog Devices Inc |
IC OPAMP QUAD R-R I/O 14-TSSOP |
Data Sheet |
|
|
||||||||||||||||||
|
AD8554ARUZ-REEL |
|
IC OPAMP CHOPPER R-R 14TSSOP |
Data Sheet |
|
|
||||||||||||||||||
|
AD8554ARZ |
|
IC OPAMP CHOPPER R-R QUAD 14SOIC |
Data Sheet |
|
|
||||||||||||||||||
