Product Summary

The 7LB184 combine a 3-state, differential line driver and a differential input line receiver, both of which operate from a single 5-V power supply. The 7LB184 has active-high and active-low enables, respectively, which can externally connect together to function as a direction control. The 7LB184 differential outputs and the receiver differential inputs connect internally to form a differential input/output (I/O) bus port that is designed to offer minimum loading to the bus whenever the driver is disabled or VCC = 0. This port features wide positive and negative common-mode voltage ranges, making the device suitable for party-line applications. Very low device supply current can be achieved by disabling the driver and the receiver.

Parametrics

7LB184 absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Voltage range at any bus terminal: −10 V to 15 V; (3)Input voltage, VI (D, DE, R, or RE): −0.3 V to VCC + 0.5 V; (4)Receiver output current, IO: 10 mA; (5)Storage temperature range, Tstg: −65°C to 150°C.

Features

7LB184 features: (1)High-Speed Low-Power LinBiCMOS Circuitry; (2)Designed for High-Speed Operation in Both Serial and Parallel Applications; (3)Low Skew; (4)Designed for Multipoint Transmission on Long Bus Lines in Noisy Environments; (5)Very Low Disabled Supply Current: 200 μA Maximum; (6)Wide Positive and Negative Input/Output Bus Voltage Ranges; (7)Thermal-Shutdown Protection; (8)Driver Positive-and Negative-Current Limiting; (9)Open-Circuit Failsafe Receiver Design; (10)Receiver Input Sensitivity . ±200 mV Max; (11)Receiver Input Hysteresis . 50 mV Typ; (12)Operates From a Single 5-V Supply; (13)Glitch-Free Power-Up and Power-Down Protection.

alt="7LB184 pin connection"

Diagrams

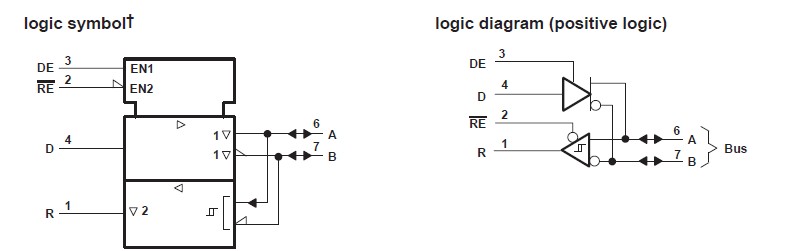

7LB184 pin connection
