Product Summary
The 74VHC4053MX is a digitally controlled analog switche. The 74VHC4053MX implemented in advanced silicon-gate CMOS technology. The 74VHC4053MX have low “on” resistance and low “off” leakages. The 74VHC4053MX bidirectional switche, thus any analog input may be used as an output and vice-versa. Also the switche contain linearization circuitry which lowers the “on” resistance and increases switch linearity. The 74VHC4053MX allow control of up to ±6V (peak) analog signals with digital control signals of 0 to 6V.
Parametrics
74VHC4053MX absolute maximum ratings: (1)Supply Voltage (VCC): -0.5 to +7.5V; (2)Supply Voltage (VEE): +0.5 to -7.5V; (3)Control Input Voltage (VIN): -1.5 to VCC+1.5V; (4)Switch I/O Voltage (VIO): VEE-0.5 to VCC+0.5V; (5)Clamp Diode Current (IIK, IOK): ±20 mA; (6)Output Current, per pin (IOUT): ±25 mA; (7)VCC or GND Current, per pin (ICC): ±50 mA; (8)Storage Temperature Range (TSTG): -65°C to +150°C; (9)Power Dissipation (PD)(Note 3): 600 mW; (10)Power Dissipation (PD)S.O. Package only: 500 mW; (11)Lead Temperature (TL)(Soldering 10 seconds): 260°C.
Features
74VHC4053MX features: (1)Wide analog input voltage range: ±6V; (2)Low “on” resistance: 50 typ. (VCC–VEE = 4.5V)30 typ. (VCC–VEE = 9V); (3)Logic level translatioto enable 5V logic with ±5V analog signals; (4)Low quiescent current: 80 mA maximum; (5)Matched switch characteristic; (6)Piand functiocompatible with the 74HC4051/ 4052/ 4053.

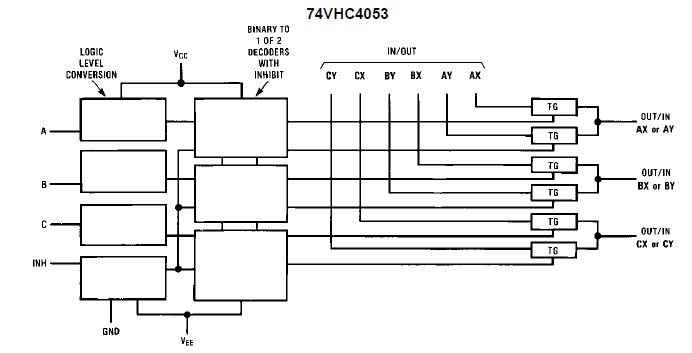

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 74VHC4053MX |
Fairchild Semiconductor |
Multiplexer Switch ICs Trp 2-Chan Ana Multi |
Data Sheet |
Negotiable |
|
||||
 |
74VHC4053MX_NL |
Fairchild Semiconductor |
Multiplexer Switch ICs FINISHED GOOD |
Data Sheet |
Negotiable |
|
||||
