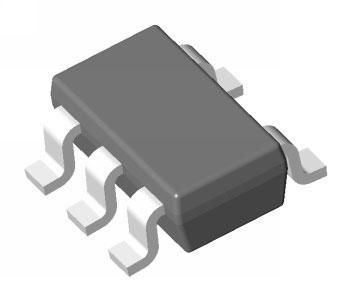

Product Summary

The 74lvc1g125dbvr is a single bus buffer with 3-state output. designed for 1.65-V to 5.5-V VCC operation. NanoStar and NanoFree package technology of the 74lvc1g125dbvr is a major breakthrough in IC packaging concepts, using the die as the package. The 74lvc1g125dbvr is fully specified for partial-power-down applications using Ioff.

Parametrics

74lvc1g125dbvr absolute maximum ratings: (1) Supply voltage range Vcc: -0.5 to 6.5V; (2) Input voltage range VI: -0.5 to 6.5V; (3) Voltage range applied to any output in the high-impedance or power-off state Vo: -0.5 to 6.5V; (4) Voltage range applied to any output in the high or low state Vo: -0.5 to Vcc +0.5V; (5) Input clamp current IIK: -50mA; (6) Output clamp current IOK: -50mA; (7) Continuous output current Io: ±50mA; (8) Continuous current through Vcc or GND: ±100mA; (9) Storage temperature range Tstg: -65 to +150°C.

Features

74lvc1g125dbvr features: (1) Available in the Texas Instruments NanoStar and NanoFree Packages; (2) Supports 5-V VCC Operation; (3) Inputs Accept Voltages to 5.5 V; (4) Max tpd of 3.7 ns at 3.3 V; (5) Low Power Consumption, 10-μA Max ICC; (6) ±24-mA Output Drive at 3.3 V; (7) Ioff Supports Partial-Power-Down Mode operation; (8) Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (9) ESD Protection Exceeds JESD 22.

Diagrams

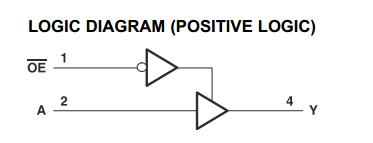

74lvc1g125dbvr Logic Diagram
