Product Summary
The 74lcx125mtcx is a low voltage quad buffer with 5V tolerant inputs and outputs. The 74lcx125mtcx contains four independent non-inverting buffers with 3-STATE outputs. The inputs tolerate voltages up to 7V allowing the interface of 5V systems to 3V systems. The 74lcx125mtcx is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
Parametrics
74lcx125mtcx absolute maximum ratings: (1)VCC Supply Voltage: -0.5 to 7.0 V; (2)VI DC Input Voltage: -0.5 to 7.0 V; (3)VO DC Output Voltage -0.5 to 7.0: Output in 3-STATE V; (4)-0.5 to VCC 0.5: Output in HIGH or LOW State V; (5)IO DC Output Source/Sink Current: 50 mA; (6)ICC DC Supply Current per Supply Pin: 100 mA; (7)IGND DC Ground Current per Ground Pin: 100 mA; (8)TSTG Storage Temperature: -65 to 150°C; (9)CPD Power Dissipation Capacitance VCC 3.3V, VI 0V or VCC, f 10 MHz: 25.0 pF.
Features
74lcx125mtcx features: (1)5V tolerant inputs and outputs; (2)2.3V–3.6V VCC specifications provided; (3)6.0 ns tPD max (VCC 3.3V), 10 PA ICC max; (4)Power down high impedance inputs and outputs; (5)Supports live insertion/withdrawal (Note 1); (6)r24 mA output drive (VCC 3.0V); (7)Implements patented noise/EMI reduction circuitry; (8)Latch-up performance exceeds JEDEC 78 conditions; (9)ESD performance: Human body model 2000V, Machine model 100V; (10)Leadless Pb-Free DQFN package.

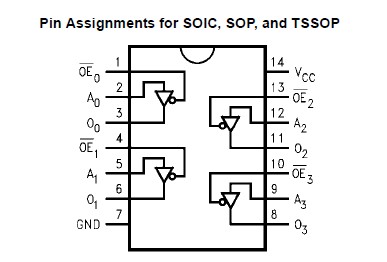

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74LCX125MTCX |
Fairchild Semiconductor |
Buffers & Line Drivers Low Voltage Quad Buffer w/ 5V Tol IO |
Data Sheet |
|
|
||||||||||||
 |
74LCX125MTCX_NL |
Fairchild Semiconductor |
Buffers & Line Drivers FINISHED GOOD |
Data Sheet |
Negotiable |
|
||||||||||||
